HMC646LP2ETR - Analog Devices

Description: 40W SPDT Failsafe Switch SMT, 0.1 - 2.1 GHz, Single Positive Control: 0/+3V to 0/+8V

Download HMC646LP2ETR Model

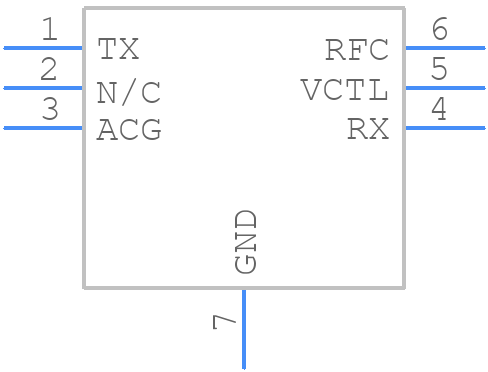

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC646LP2ETR - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LFCSP_2026
click to zoom

HMC646LP2ETR Details

  • Manufacturer Part Number:

    HMC646LP2ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    HCP-6-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    44 dBm

  • Insertion Loss-Max:

    1.7 dB

  • Isolation-Min:

    12 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • On Time-Nom:

    0.32 µs

  • Operating Frequency-Max:

    2100 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.09

HMC646LP2ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are properly decoupled with 100nF capacitors, and the bias voltage (Vbias) is set to the recommended 3.3V or 5V, depending on the application.
  • The HMC646LP2ETR can handle up to 30dBm of input power, but it's recommended to operate at 20dBm or less to ensure optimal performance and prevent damage.
  • Check the PCB layout for any signs of resonance or oscillation, ensure proper decoupling and biasing, and verify the input and output impedances are matched to the recommended 50 ohms.
  • Yes, the HMC646LP2ETR can be used in a push-pull configuration, but it requires careful impedance matching and biasing to ensure optimal performance and prevent oscillations.
