HMC647ALP6E - Analog Devices

Description: Phase Shifter Digital 2500MHz to 3100MHz 28-Pin QFN EP T/R

Download HMC647ALP6E Model

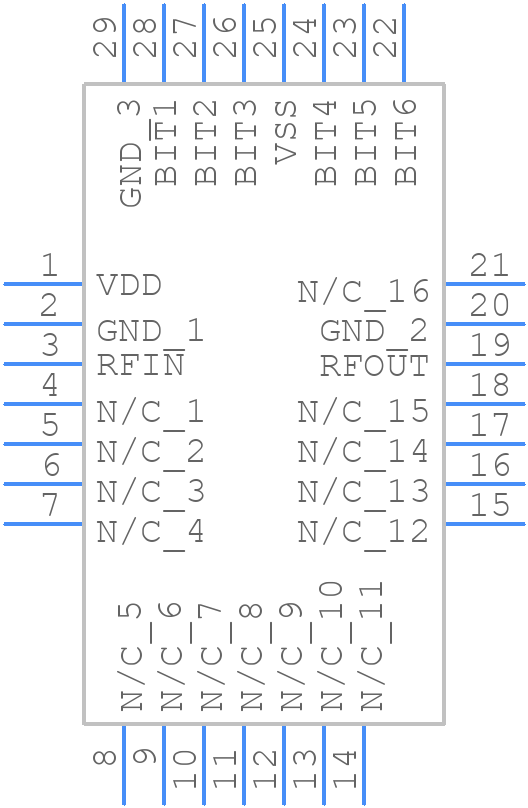

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC647ALP6E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NO-LEAD (QFN) PLASTIC PACKAGE
click to zoom
3D Models
HMC647ALP6E - Analog Devices  - 3D model - Quad Flat No-Lead - NO-LEAD (QFN) PLASTIC PACKAGE
click to zoom

HMC647ALP6E Details

  • Manufacturer Part Number:

    HMC647ALP6E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    HCP-28-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33 dBm

  • Insertion Loss-Max:

    6.5 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    28

  • Operating Frequency-Max:

    3100 MHz

  • Operating Frequency-Min:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC28,.24SQ,25

  • Phase Shift-Max:

    360 deg

  • Power Supplies:

    +-5 V

  • RF/Microwave Device Type:

    DIGITALLY CONTROLLED PHASE SHIFTER

  • Supply Current-Max:

    15 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.38

HMC647ALP6E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
  • Use a network analyzer to measure the input and output impedance of the device, and then design matching networks using a Smith chart or simulation software.
  • Follow the recommended biasing and tuning procedures outlined in the datasheet, and use a variable voltage source to adjust the bias voltage for optimal performance.
  • Monitor the device's voltage, current, and temperature to ensure they are within the specified limits. Use a thermal sensor and a voltage/current monitor to prevent overheating and overvoltage/overcurrent conditions.
  • Handle the device with an ESD wrist strap or mat, and ensure the PCB is designed with ESD protection in mind. Use a conformal coating to protect the device from moisture and humidity.
