HMC649ALP6E - Analog Devices

Description: Phase Shifter Digital 3000MHz to 6000MHz 28-Pin QFN EP Cut Tape

Download HMC649ALP6E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

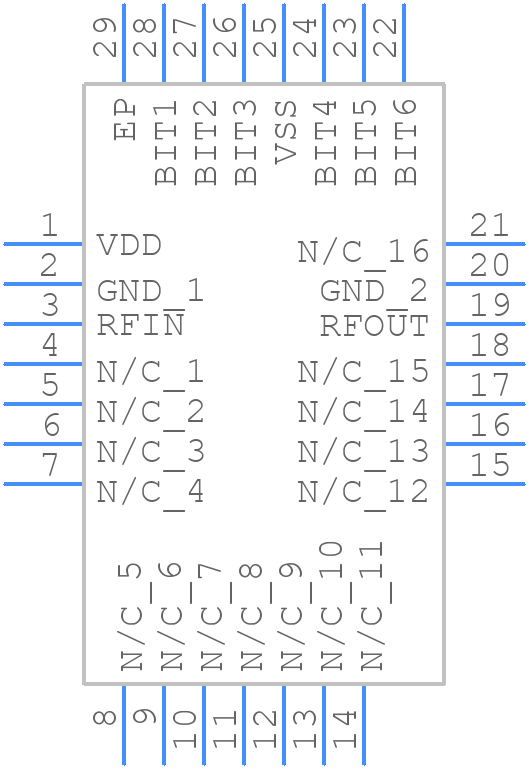

HMC649ALP6E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC649ALP6E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC648ALP6E
click to zoom
3D Models
HMC649ALP6E - Analog Devices - 3D model - Quad Flat No-Lead - HMC648ALP6E
click to zoom

HMC649ALP6E Details

  • Manufacturer Part Number:

    HMC649ALP6E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    HCP-28-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    32 dBm

  • Insertion Loss-Max:

    10.5 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    28

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC28,.24SQ,25

  • Phase Shift-Max:

    360 deg

  • Power Supplies:

    +-5 V

  • RF/Microwave Device Type:

    DIGITALLY CONTROLLED PHASE SHIFTER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.92

HMC649ALP6E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC649ALP6E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean power source, and the Vee pin should be connected to a quiet ground.
  • The HMC649ALP6E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 4 GHz for optimal performance.
  • To minimize the noise figure, ensure the device is operated at the recommended bias point, and the input and output impedances are matched. Use a low-noise power supply, and minimize the length of the input and output traces to reduce noise pickup.
  • The HMC649ALP6E has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid overheating the device, as it can reduce its lifespan.
