HMC652LP2E - Analog Devices

Description: Analog Devices Hittite HMC652LP2E, Fixed Attenuator, 2dB, 25GHz, 6-Pin SMT

Download HMC652LP2E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

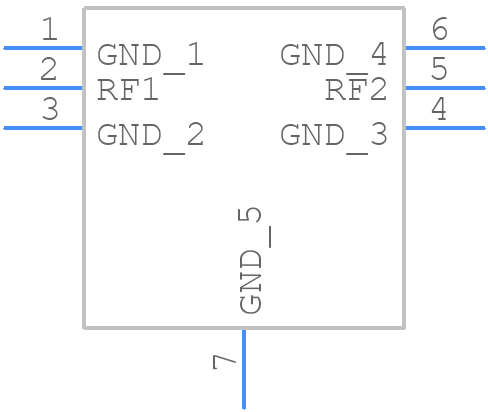

Symbol
HMC652LP2E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC652LP2E - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 6 Lead 2x2 mm SMT
click to zoom
3D Models
HMC652LP2E - Analog Devices - 3D model - Small Outline No-lead - 6 Lead 2x2 mm SMT
click to zoom

HMC652LP2E Details

  • Manufacturer Part Number:

    HMC652LP2E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 2 MM, ROHS COMPLIANT, PLASTIC, SMT, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    HCP-6-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Attenuation-Nom:

    2 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    25000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.08,25

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    2.61

HMC652LP2E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC652LP2E requires a single +5V power supply. Ensure the power supply is clean and well-regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
  • The HMC652LP2E can operate up to 2.5 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC652LP2E has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and the clock signal is synchronized with the data signals.
  • The typical current consumption of the HMC652LP2E is around 350mA, but this can vary depending on the operating frequency and the specific application.
