A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
The HMC662LP3E requires a single +3.3V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 20mA.
The HMC662LP3E can operate up to 6 GHz, but the optimal frequency range is between 2 GHz and 4 GHz for best performance.
The HMC662LP3E has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. Ensure the interface is properly terminated and decoupled to prevent signal reflections.
The typical current consumption of the HMC662LP3E is 20mA at 3.3V, but this can vary depending on the operating frequency and bias conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HMC662LP3E Overview

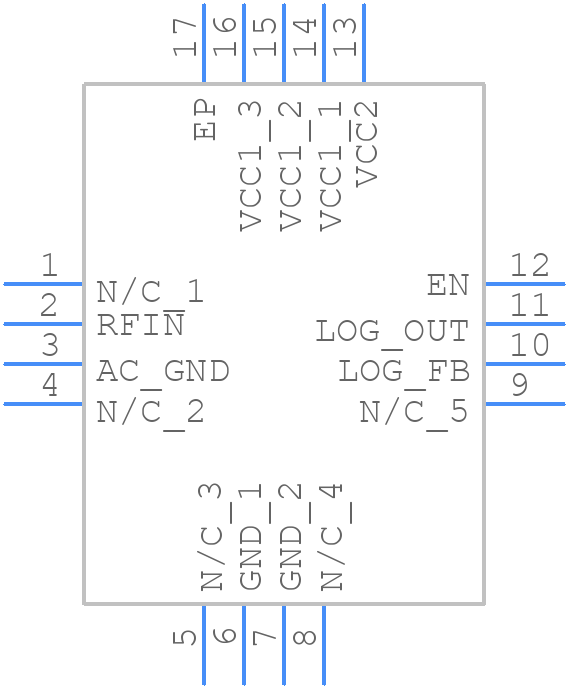

Use the download button to access the HMC662LP3E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC66,
or try a keyword search, such as RF/Microwave Detectors
