HMC6832ALP5LETR - Analog Devices

Description: Low Noise, 2:8 Differential, Fanout Buffer

Download HMC6832ALP5LETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

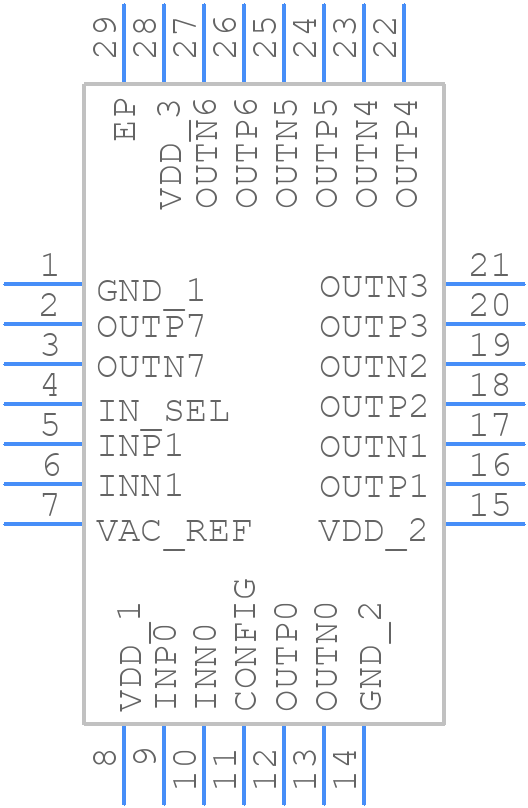

HMC6832ALP5LETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC6832ALP5LETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Figure 56. 28-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.85 mm Package Height --
click to zoom
3D Models
HMC6832ALP5LETR - Analog Devices - 3D model - Quad Flat No-Lead - Figure 56. 28-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.85 mm Package Height --
click to zoom

HMC6832ALP5LETR Details

  • Manufacturer Part Number:

    HMC6832ALP5LETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LFCSP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    HCP-28-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE AT 3.3V NOMINAL

  • Family:

    6832

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-XQCC-N28

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of True Outputs:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

HMC6832ALP5LETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • Ensure the VCC and VEE pins are properly decoupled with 0.1uF and 10uF capacitors, respectively. Also, ensure the bias voltage (VBIAS) is set to the recommended 3.3V or 5V, depending on the application.
  • The HMC6832ALP5LETR is rated for operation from -40°C to +85°C. However, it's recommended to derate the device's performance at temperatures above 70°C to ensure reliability.
  • Use an oscilloscope to verify the output signal's amplitude, frequency, and waveform. Check for proper power supply decoupling, signal routing, and termination. Also, ensure the device is properly biased and configured for the desired output frequency.
  • No, the HMC6832ALP5LETR is not designed for radiation-hardened applications. It's intended for commercial use only. For radiation-hardened applications, consider using a different device or consulting with Analog Devices Inc. for a custom solution.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC6832ALP5LETR Overview

Use the download button to access the HMC6832ALP5LETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC68, or try a keyword search, such as Clock Drivers
