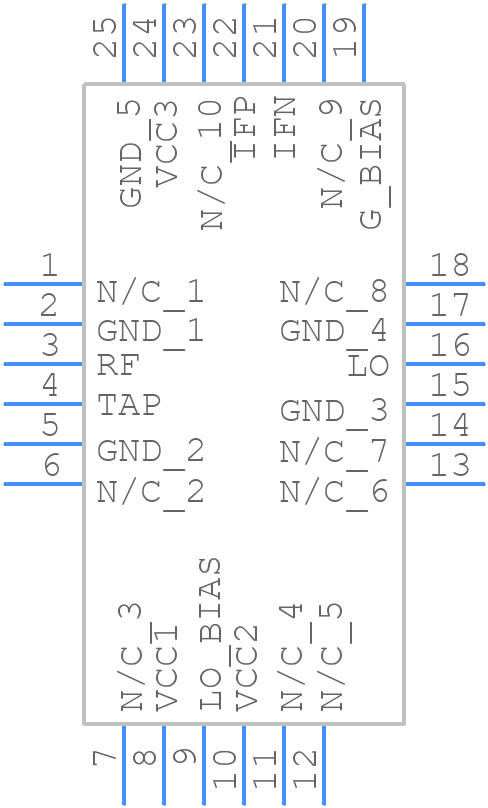

HMC688LP4ETR - Analog Devices

HMC688LP4ETR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the HMC688LP4ETR?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the RF input, and the RF traces should be kept short and shielded to minimize radiation and coupling.
• How do I ensure the HMC688LP4ETR is properly biased for optimal performance?
  The device requires a single 5V supply voltage, and the VCC pin should be decoupled with a 10nF capacitor to ground. Additionally, the VEE pin should be connected to a quiet ground or a voltage divider to set the desired bias voltage.
• What is the maximum input power that the HMC688LP4ETR can handle?
  The maximum input power is +10dBm, but it's recommended to operate the device at a maximum input power of +5dBm to ensure optimal performance and prevent damage.
• How do I interface the HMC688LP4ETR with a microcontroller or FPGA?
  The device has a parallel interface, and the output data is available on the 12-bit parallel output bus. The interface can be clocked at up to 100MHz, and the output data is valid on the rising edge of the clock signal.
• What is the latency of the HMC688LP4ETR, and how does it affect system performance?
  The latency of the device is approximately 30ns, which is the time it takes for the device to convert the input signal to a digital output. This latency should be considered when designing the system, especially in applications that require real-time processing.
