HMC694LP4E - Analog Devices

Description: GaAs MMIC Analog Variable Gain Amplifier, 6 - 17 GHz

Download HMC694LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

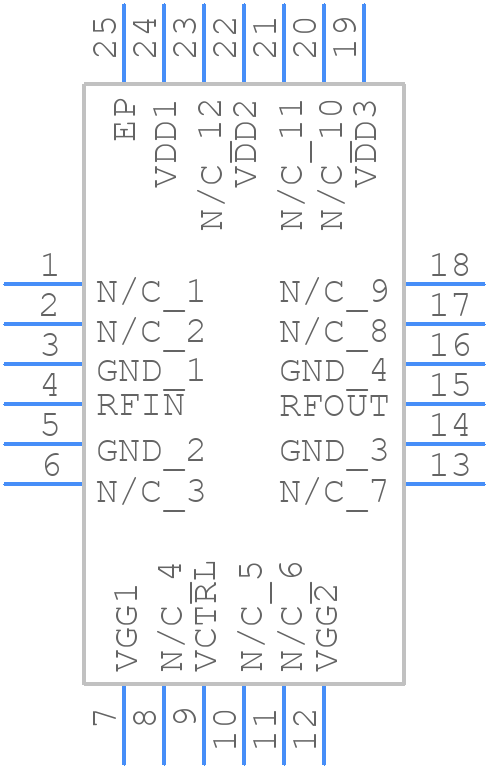

Symbol
HMC694LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC694LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC694LP4E
click to zoom
3D Models
HMC694LP4E - Analog Devices - 3D model - Quad Flat No-Lead - HMC694LP4E
click to zoom

HMC694LP4E Details

  • Manufacturer Part Number:

    HMC694LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, PLASTIC, SMT, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    14 dB

  • Input Power-Max (CW):

    5 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    17000 MHz

  • Operating Frequency-Min:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Matte Tin (Sn)

HMC694LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
  • Use a network analyzer to measure the input and output impedance of the device. Then, use a simulation tool like ADS or AWR to design and optimize the matching networks for maximum gain and efficiency.
  • Apply a voltage of 5V to the VDD pin and 3.3V to the VCC pin. Use a variable resistor to adjust the bias voltage (VBIAS) to achieve the desired output power and efficiency.
  • Monitor the device's junction temperature (TJ) and ensure it stays below the maximum rating of 150°C. Also, limit the input power to prevent excessive current and voltage stress.
  • Use an ESD wrist strap or mat when handling the device. Store the device in an anti-static bag or container. Avoid touching the device's pins or exposing it to electrostatic discharge.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC694LP4E Overview

Use the download button to access the HMC694LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC69, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
