HMC700LP4E - Analog Devices

Description: 8 GHz 16-Bit Fractional-N PLL

Download HMC700LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

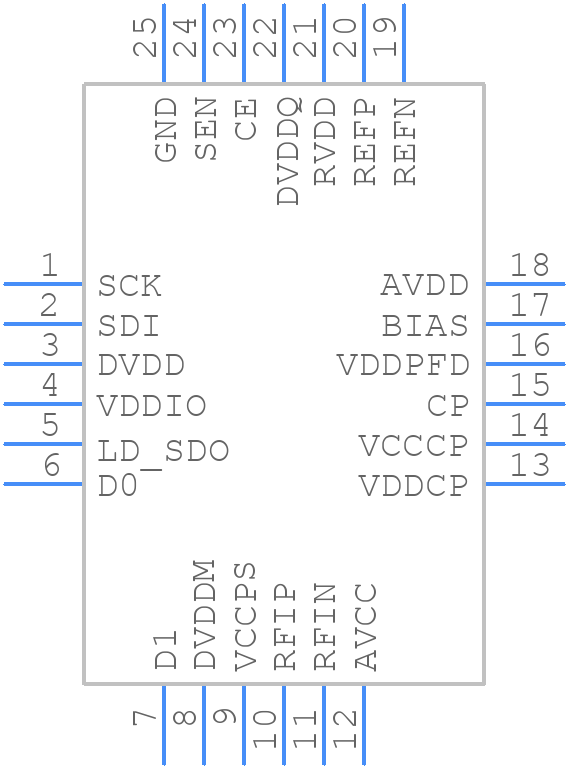

HMC700LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC700LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023.
click to zoom
3D Models
HMC700LP4E - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023.
click to zoom

HMC700LP4E Details

  • Manufacturer Part Number:

    HMC700LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMT-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    110 mA

  • Supply Voltage-Max (Vsup):

    3.4 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

HMC700LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC700LP4E requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC700LP4E can support data rates up to 12.5 Gbps. However, the actual data rate achievable depends on the specific application, PCB layout, and signal integrity.
  • Use a high-speed oscilloscope to measure the signal integrity and power supply noise. Check the PCB layout for any signal routing or power supply issues. Consult the datasheet and application notes for troubleshooting guidelines.
  • The HMC700LP4E is not specifically designed for radiation-hardened applications. However, Analog Devices Inc. offers other products that are designed for radiation-hardened applications. Consult with Analog Devices Inc. for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC700LP4E Overview

Use the download button to access the HMC700LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC70, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
