HMC702LP6CE - Analog Devices

Description: Analog Devices Hittite HMC702LP6CE, Frequency Synthesizer, 40-Pin QFN

Download HMC702LP6CE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

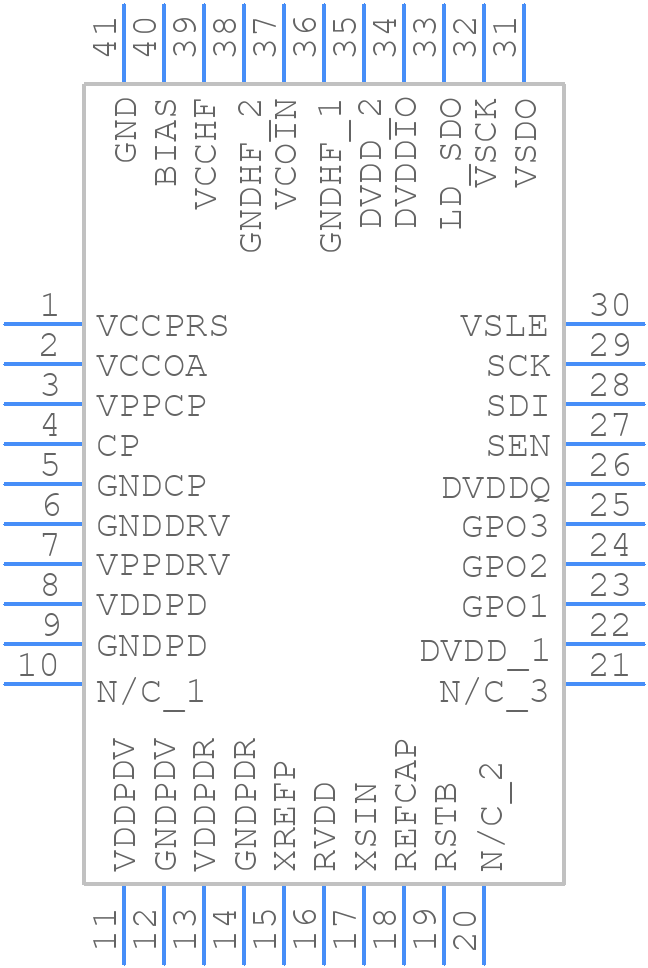

HMC702LP6CE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC702LP6CE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-VFQFN Exposed Pad
click to zoom
3D Models
HMC702LP6CE - Analog Devices - 3D model - Quad Flat No-Lead - 40-VFQFN Exposed Pad
click to zoom

HMC702LP6CE Details

  • Manufacturer Part Number:

    HMC702LP6CE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QCC-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

HMC702LP6CE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC702LP6CE requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC702LP6CE can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC702LP6CE has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. Ensure the interface is properly configured and the clock speed is within the recommended range.
  • The typical current consumption of the HMC702LP6CE is around 350mA, but this can vary depending on the specific application and operating conditions.
