HMC7043LP7FE - Analog Devices

Description: Clock Drivers & Distribution 2:14 fanout buffer with SPI and dividers

Download HMC7043LP7FE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

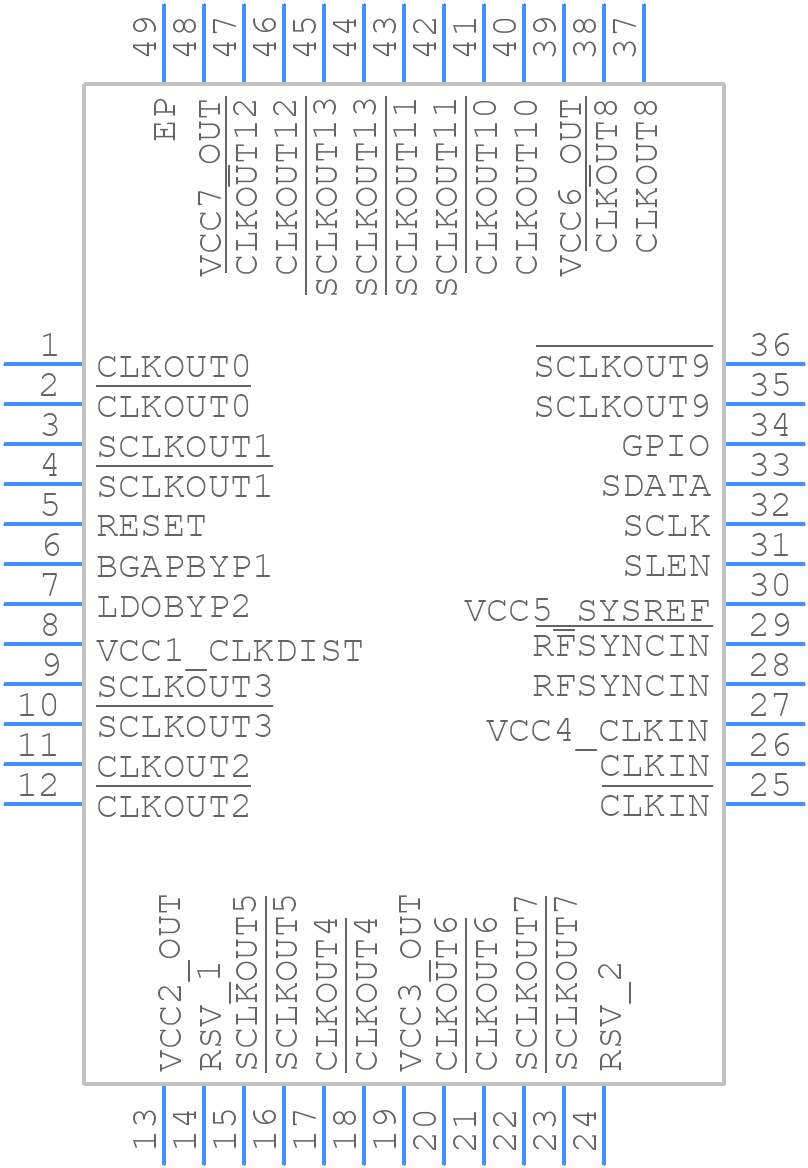

HMC7043LP7FE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC7043LP7FE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC7043LP7FE*1
click to zoom
3D Models
HMC7043LP7FE - Analog Devices - 3D model - Quad Flat No-Lead - HMC7043LP7FE*1
click to zoom

HMC7043LP7FE Details

  • Manufacturer Part Number:

    HMC7043LP7FE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    HCP-48-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATED AS SERIAL INPUT AND OUTPUT

  • Family:

    7043

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    0.87 ns

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

HMC7043LP7FE Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC7043LP7FE involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. For thermal management, a heat sink or thermal pad can be used to dissipate heat, and the device should be placed in a well-ventilated area.
  • To optimize the performance of the HMC7043LP7FE, it's essential to carefully select the input and output impedance, choose the correct gain setting, and optimize the power supply decoupling. Additionally, ensuring proper PCB layout, using high-quality components, and minimizing noise and interference can also improve performance.
  • Potential sources of noise and interference in the HMC7043LP7FE include electromagnetic interference (EMI), radio-frequency interference (RFI), and power supply noise. These can be mitigated by using shielding, filtering, and decoupling, as well as ensuring proper PCB layout and component selection.
  • To troubleshoot common issues with the HMC7043LP7FE, start by checking the power supply voltage, input and output impedance, and gain settings. Ensure that the device is properly decoupled and that the PCB layout is correct. If issues persist, consult the datasheet and application notes, or contact Analog Devices Inc. support for further assistance.
  • The HMC7043LP7FE has a maximum junction temperature of 150°C. To manage thermal limitations, ensure proper heat sinking, use a thermal pad or heat sink, and avoid operating the device at maximum power dissipation for extended periods. Monitor the device temperature and adjust the operating conditions accordingly.
