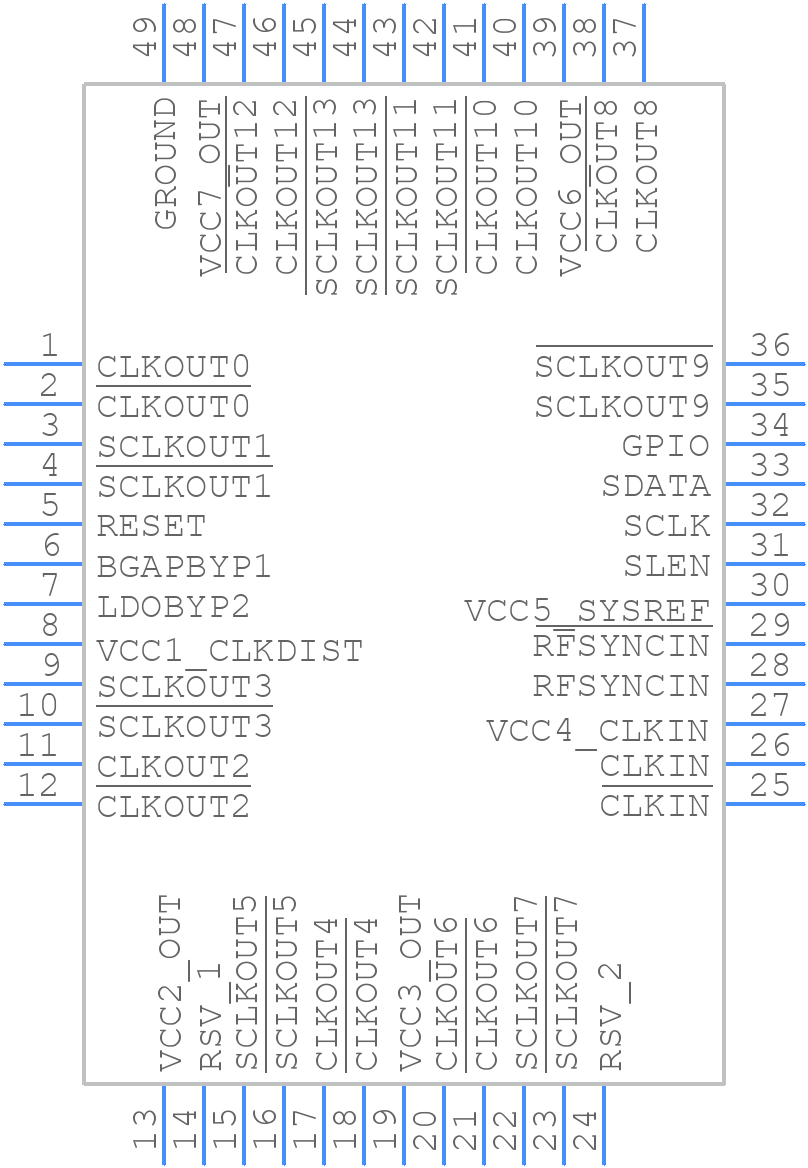

HMC7043LP7FETR - Analog Devices

HMC7043LP7FETR Details

• Manufacturer Part Number:

  HMC7043LP7FETR

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LFCSP-48

• Pin Count:

  48

• Manufacturer Package Code:

  HCP-48-1

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  ALSO OPERATED AS SERIAL INPUT AND OUTPUT

• Family:

  7043

• Input Conditioning:

  DIFFERENTIAL

• JESD-30 Code:

  S-XQCC-N48

• JESD-609 Code:

  e4

• Length:

  7 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  48

• Number of True Outputs:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC48,.27SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Propagation Delay (tpd):

  0.87 ns

• Seated Height-Max:

  0.9 mm

• Supply Voltage-Max (Vsup):

  3.465 V

• Supply Voltage-Min (Vsup):

  3.135 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm
