HMC7044BLP10BE - Analog Devices

Description: High Performance, 3.2 GHz, 14-Output Jitter Attenuator with JESD204B and JESD204C Support

Download HMC7044BLP10BE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HMC7044BLP10BE - Analog Devices - PCB symbol
click to zoom
PCB Footprints

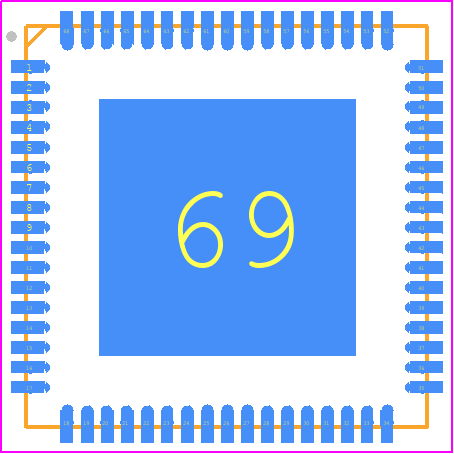

HMC7044BLP10BE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 68 lead(hcp-68-1)
click to zoom
3D Models
HMC7044BLP10BE - Analog Devices - 3D model - Quad Flat No-Lead - 68 lead(hcp-68-1)
click to zoom

HMC7044BLP10BE Details

  • Manufacturer Part Number:

    HMC7044BLP10BE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-68

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N68

  • Length:

    10 mm

  • Number of Terminals:

    68

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    3200 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC68,.4SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    800 MHz

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    225 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    JITTER ATTENUATOR

HMC7044BLP10BE Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC7044BLP10BE involves keeping the signal paths short, using a solid ground plane, and separating the analog and digital sections of the board. It's also important to follow the recommended pinout and component placement guidelines provided in the datasheet.
  • To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 100nF) between the VCC and GND pins, and a 10uF capacitor between the AVCC and AGND pins. Additionally, use a separate power plane for the analog and digital sections, and ensure that the power supply is clean and well-regulated.
  • The HMC7044BLP10BE can support clock frequencies up to 3.2 GHz, but the maximum frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and perform simulations to determine the maximum clock frequency for a specific design.
  • The HMC7044BLP10BE can be configured for different output frequencies using the PLL loop filter components (R1, R2, C1, and C2) and the PLL programming pins (PLL_PIN1-PLL_PIN4). The datasheet provides a detailed description of the PLL programming and loop filter component selection.
  • The typical power consumption of the HMC7044BLP10BE is around 1.2W, but this can vary depending on the specific application, clock frequency, and output power. It's recommended to consult the datasheet and perform power consumption calculations for a specific design.
