HMC7044BLP10BETR - Analog Devices

Description: Ultra-low rms jitter: 44 fs typical (12 kHz to 20 MHz) at 2457.6 MHz ► Noise floor: −156 dBc/Hz at 2457.6 MHz ► Low phase noise: −141.7 dBc/Hz at 800 kHz, 983.04 MHz output ► Up to 14 LVDS, LVPECL, or CML type device clocks (DCLKs) from PLL2

Download HMC7044BLP10BETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HMC7044BLP10BETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints

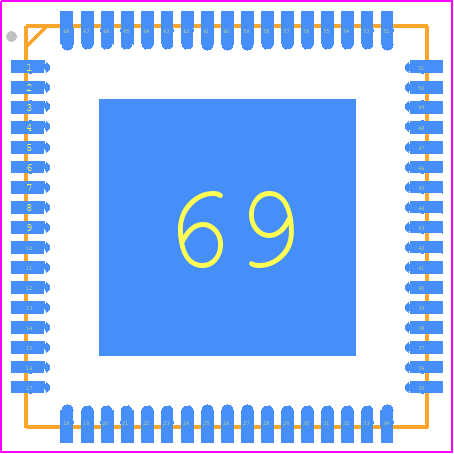

HMC7044BLP10BETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-68-1
click to zoom
3D Models
HMC7044BLP10BETR - Analog Devices - 3D model - Quad Flat No-Lead - HCP-68-1
click to zoom

HMC7044BLP10BETR Details

  • Manufacturer Part Number:

    HMC7044BLP10BETR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-68

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N68

  • Length:

    10 mm

  • Number of Terminals:

    68

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    3200 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC68,.4SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    800 MHz

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    225 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    JITTER ATTENUATOR

HMC7044BLP10BETR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance can be found in the HMC7044 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for signal integrity and thermal management.
  • The HMC7044BLP10BETR is a highly configurable device that can be programmed to operate in different frequency bands using the SPI interface. The device has multiple registers that control the frequency synthesizer, PLL, and VCO settings. Refer to the datasheet and the HMC7044 Programming Guide for detailed information on how to configure the device for specific frequency bands.
  • The maximum power consumption of the HMC7044BLP10BETR depends on the operating mode and frequency band. According to the datasheet, the maximum power consumption is typically around 3.5W at 5GHz, but this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform power consumption calculations based on the specific use case.
  • To ensure signal integrity and minimize EMI emissions, it's essential to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering components as needed. Additionally, the HMC7044BLP10BETR has built-in features such as output stage filtering and EMI reduction modes that can be enabled to minimize emissions.
  • The HMC7044BLP10BETR is a high-power device that requires proper thermal management to ensure reliable operation. The recommended thermal management strategy involves using a heat sink or thermal pad to dissipate heat, and ensuring good airflow around the device. The datasheet provides thermal resistance and junction temperature specifications that can be used to design an effective thermal management system.
