Part Image

HMC713MS8E - Analog Devices

Description: ANALOG DEVICES - HMC713MS8E - RF Detector / Controller IC, 45 MHz to 2.7 GHz, 12 dBm Input Power, 2.7 V to 5.5 V supply, MSOP-8

Download HMC713MS8E Model

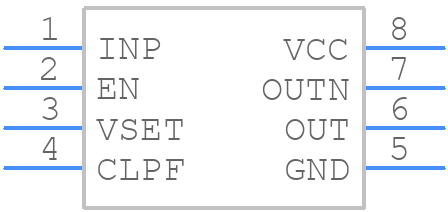

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC713MS8E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - H713
click to zoom
3D Models
HMC713MS8E - Analog Devices  - 3D model - Small Outline Packages - H713
click to zoom

HMC713MS8E Details

  • Manufacturer Part Number:

    HMC713MS8E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRM-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    SMA

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    12 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    POSITIVE

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    THRESHOLD DETECTOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC713MS8E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary. Refer to the application note AN-1369 for more details.
  • Optimize the output power and efficiency by adjusting the input power, bias voltage, and load impedance. Use the device's built-in power detector and adjust the bias voltage to achieve the desired output power. Refer to the application note AN-1369 for more details.
  • The recommended input and output matching network depends on the specific application and frequency range. Use a pi-network or a T-network topology with capacitors and inductors to achieve the desired impedance matching. Refer to the application note AN-1369 for more details.
  • Reduce the noise figure by optimizing the input and output matching networks, using a low-noise amplifier, and minimizing the signal path loss. Improve the dynamic range by using a high-gain amplifier and optimizing the bias voltage and current.
  • The recommended operating temperature range for the HMC713MS8E is -40°C to +85°C. However, the device can operate up to +105°C with reduced performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC713MS8E Overview

Use the download button to access the HMC713MS8E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC71, or try a keyword search, such as RF/Microwave Detectors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
