HMC721LP3E - Analog Devices

Description: IC XOR/XNOR GATE 16SMT

Download HMC721LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

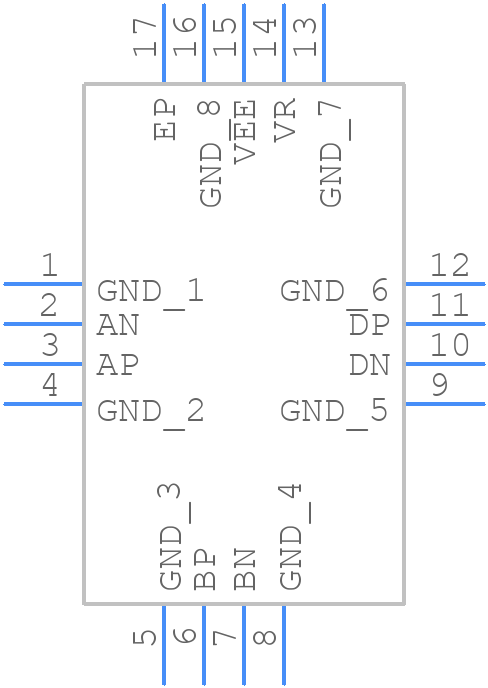

HMC721LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC721LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC721LP3E
click to zoom
3D Models
HMC721LP3E - Analog Devices - 3D model - Quad Flat No-Lead - HMC721LP3E
click to zoom

HMC721LP3E Details

  • Manufacturer Part Number:

    HMC721LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, PLASTIC, SMT-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Family:

    721

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    XOR/XNOR GATE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Inputs:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    -3.6 V

  • Supply Voltage-Min (Vsup):

    -3 V

  • Supply Voltage-Nom (Vsup):

    -3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

HMC721LP3E Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC721LP3E involves keeping the signal paths short, using a solid ground plane, and separating the analog and digital sections of the board. It's also recommended to use a 4-layer board with a dedicated power plane and to follow the layout guidelines provided in the datasheet.
  • To optimize power supply decoupling, use a combination of high-frequency and low-frequency capacitors (e.g., 100nF and 10uF) placed close to the device's power pins. Additionally, use a low-ESR capacitor (e.g., 10uF) on the VCC pin to reduce power supply noise.
  • The HMC721LP3E is rated for operation from -40°C to +85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • Common issues with the HMC721LP3E can be troubleshooted by checking the power supply voltage, ensuring proper PCB layout and decoupling, and verifying that the device is operated within its recommended specifications. Additionally, use a spectrum analyzer to identify any unwanted oscillations or noise.
  • The HMC721LP3E has built-in ESD protection, but it's still recommended to use external ESD protection devices (e.g., TVS diodes) on the input and output pins to protect against electrostatic discharge.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC721LP3E Overview

Use the download button to access the HMC721LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC72, or try a keyword search, such as Gates

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
