HMC733LC4BTR - Analog Devices

Description: VCO Oscillators WBand VCO SMT w/Buffer amp 10 - 20 GHz

Download HMC733LC4BTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

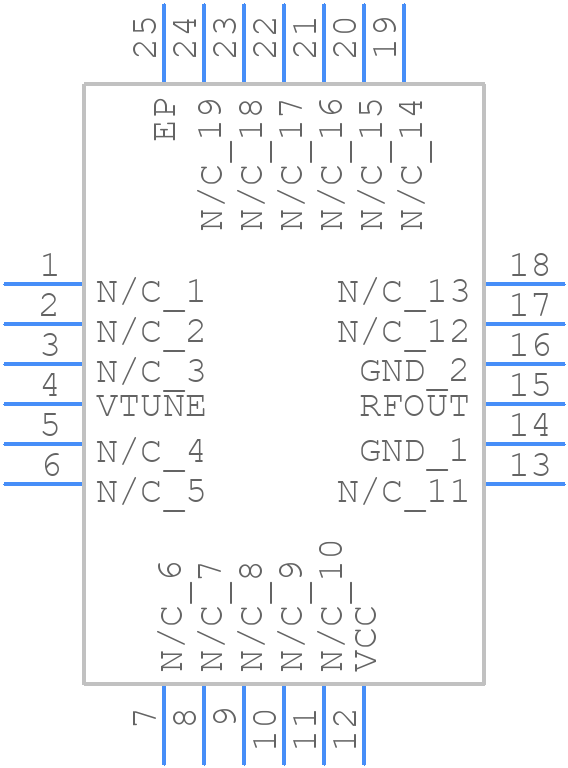

Symbol
HMC733LC4BTR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC733LC4BTR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H733XXXX
click to zoom
3D Models
HMC733LC4BTR - Analog Devices - 3D model - Quad Flat No-Lead - H733XXXX
click to zoom

HMC733LC4BTR Details

  • Manufacturer Part Number:

    HMC733LC4BTR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, SMT, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    HE-24-1

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    20000 MHz

  • Operating Frequency-Min:

    10000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • VSWR-Max:

    2

HMC733LC4BTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC733LC4BTR requires a single 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC733LC4BTR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC733LC4BTR has a parallel interface that can be connected to a microcontroller or FPGA using a standard parallel bus. Ensure the interface signals are properly terminated and matched to the device's input impedance.
  • The typical current consumption of the HMC733LC4BTR is around 350mA, but this can vary depending on the operating frequency and the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC733LC4BTR Overview

Use the download button to access the HMC733LC4BTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC73, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
