HMC734LP5 - Analog Devices

Description: RF IC VCO General Purpose 8.6GHz ~ 10.2GHz Dual Outputs (Divide by 4, Standard) 32-QFN (5x5)

Download HMC734LP5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

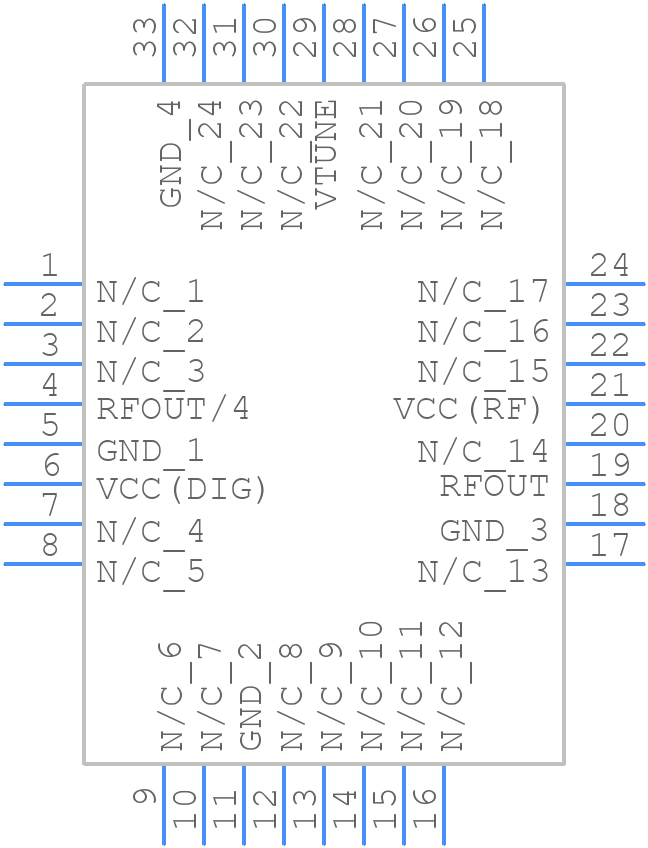

HMC734LP5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC734LP5 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026_1.31
click to zoom

HMC734LP5 Details

  • Manufacturer Part Number:

    HMC734LP5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, PLASTIC, LEADLESS, SMT, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e0

  • Operating Frequency-Max:

    10200 MHz

  • Operating Frequency-Min:

    8600 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • VSWR-Max:

    2

HMC734LP5 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are decoupled with 100nF capacitors to ground, and the Vtune pin is biased to a voltage between 2.7V and 3.3V using a voltage divider or a dedicated voltage regulator.
  • The maximum input power is +10 dBm, but it's recommended to operate at a maximum of +5 dBm to ensure optimal performance and prevent damage to the device.
  • Use the Vtune pin to adjust the frequency response. A higher Vtune voltage shifts the frequency response towards higher frequencies, while a lower Vtune voltage shifts it towards lower frequencies.
  • The recommended operating temperature range is -40°C to +85°C, but the device can operate up to +105°C with reduced performance and reliability.
