HMC734LP5ETR footprint, schematic symbol and 3D model by Analog Devices

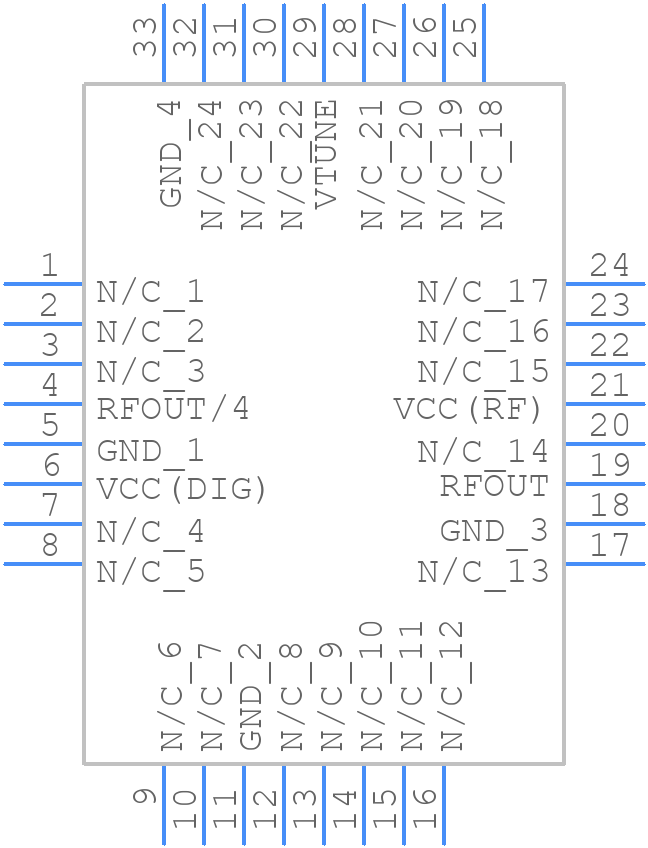

Symbol

click to zoom

PCB Footprints

HMC734LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1.3-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC734LP5ETR
Part Number HMC734LP5ETR
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LFCSP_2026-1.3-1
Released Date Sep 1, 2026
Last Modified Date Sep 1, 2026 8:55 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC734LP5ETR Details

Manufacturer Part Number:
HMC734LP5ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LEADLESS, QFN, 32 PIN
Pin Count:
32
Manufacturer Package Code:
HCP-32-1
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Control Voltage-Max:
13 V
Control Voltage-Min:
1 V
JESD-609 Code:
e3
Modulation Sensitivity:
30 MHz/V
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
32
Offset Frequency:
100 kHz
Operating Frequency-Max:
10200 MHz
Operating Frequency-Min:
8600 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
VOLTAGE CONTROLLED OSCILLATOR
Output Power:
22 dBm
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC32,.2SQ,20
Phase Noise:
-100 dBc/Hz
Physical Dimension:
5.1mm x 5.1mm x 1.0mm
Supply Current-Max:
240 mA
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)

HMC734LP5ETR Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
Ensure the VCC and VEE pins are properly decoupled with 100nF and 1uF capacitors, respectively. Also, ensure the bias voltage (VBIAS) is set to the recommended 3.3V or 5V, depending on the application.
The HMC734LP5ETR can handle up to 30dBm of input power. Exceeding this limit may cause damage to the device or affect its performance.
Check the PCB layout for any signal integrity issues, ensure proper decoupling and biasing, and verify the input signal quality. Use a spectrum analyzer to measure the output spectrum and identify any spurious signals.
Yes, the HMC734LP5ETR can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout consideration to ensure proper impedance matching and minimal signal degradation.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

HMC734LP5ETR Overview

Use the download button to access the HMC734LP5ETR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HMC73, or try a keyword search, such as Voltage Controlled Oscillators
