HMC735LP5E - Analog Devices

Description: VCO Oscillators VCO with Divide-by-4, 10.5 - 12.2 GHz

Download HMC735LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

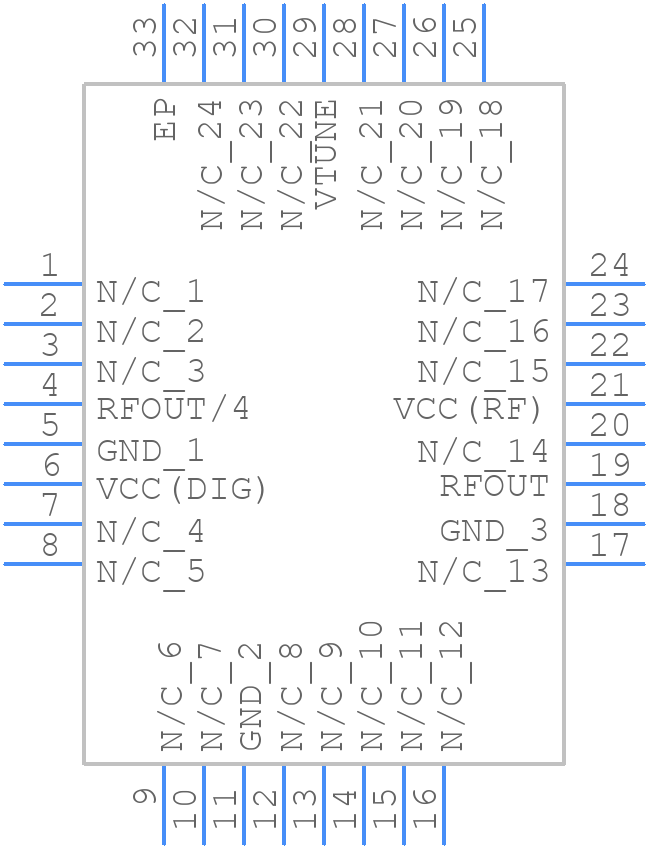

Symbol
HMC735LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC735LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MSL3
click to zoom
3D Models
HMC735LP5E - Analog Devices - 3D model - Quad Flat No-Lead - MSL3
click to zoom

HMC735LP5E Details

  • Manufacturer Part Number:

    HMC735LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    DIVIDE-BY-4 OUTPUT ALSO AVILABLE

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    1 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    30 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    12200 MHz

  • Operating Frequency-Min:

    10500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    21 dBm

  • Phase Noise:

    -100 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    240 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC735LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are decoupled with 100nF capacitors and the Iset pin is connected to a 10kΩ resistor to set the current limit. Also, ensure the input and output pins are properly terminated.
  • The maximum power dissipation of the HMC735LP5E is 1.5W. Ensure proper heat sinking and thermal management to prevent overheating.
  • Check the PCB layout for signal integrity issues, ensure proper decoupling and termination, and verify the input and output impedances match the device's requirements. Also, check for any signs of overheating or electrical overstress.
  • Yes, the HMC735LP5E is qualified for high-reliability and high-temperature applications. However, ensure the device is operated within its specified temperature range (-40°C to 125°C) and follow proper derating guidelines for high-temperature operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC735LP5E Overview

Use the download button to access the HMC735LP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC73, or try a keyword search, such as Voltage Controlled Oscillators
