HMC735LP5ETR footprint, schematic symbol and 3D model by Analog Devices

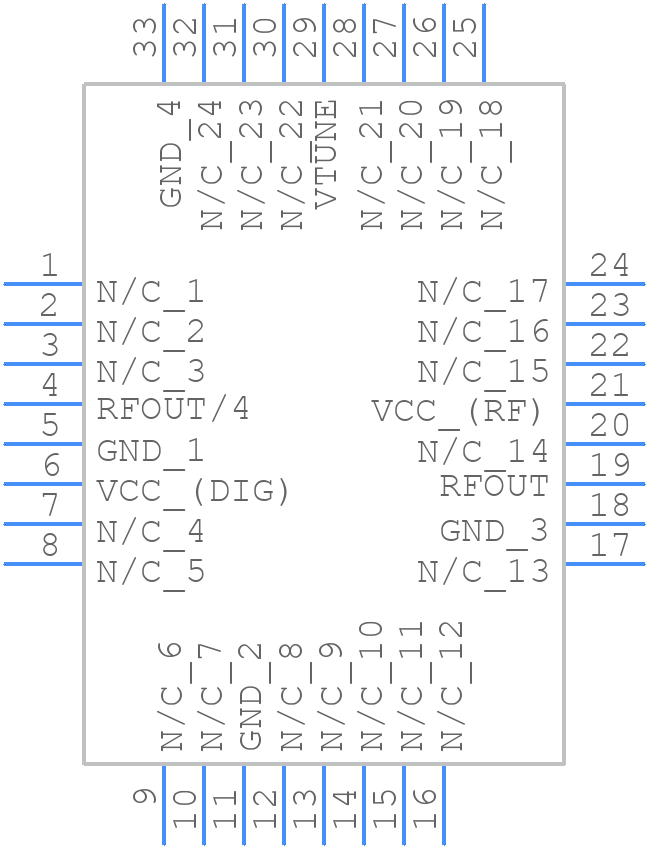

Symbol

click to zoom

PCB Footprints

HMC735LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC900LP5E

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC735LP5ETR
Part Number HMC735LP5ETR
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - HMC900LP5E
Released Date Sep 1, 2026
Last Modified Date Sep 1, 2026 5:07 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC735LP5ETR Details

Manufacturer Part Number:
HMC735LP5ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Pin Count:
32
Manufacturer Package Code:
HCP-32-1
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Control Voltage-Max:
13 V
Control Voltage-Min:
1 V
JESD-609 Code:
e3
Modulation Sensitivity:
30 MHz/V
Offset Frequency:
100 kHz
Operating Frequency-Max:
12200 MHz
Operating Frequency-Min:
10500 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
VOLTAGE CONTROLLED OSCILLATOR
Output Power:
21 dBm
Phase Noise:
-100 dBc/Hz
Supply Voltage-Nom:
5 V
Terminal Finish:
Matte Tin (Sn)

HMC735LP5ETR Frequently Asked Questions (FAQs)

A good PCB layout for the HMC735LP5ETR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1369 for more details.
The HMC735LP5ETR requires a single 5V supply voltage. Ensure that the voltage supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors. The device also requires a bias current of 10mA to 20mA, which can be set using an external resistor.
The HMC735LP5ETR is specified to operate up to 20 GHz, but it can be used at higher frequencies with some degradation in performance. However, it's recommended to consult with Analog Devices' application engineers for specific guidance on using the device at frequencies above 20 GHz.
The HMC735LP5ETR has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or a thermal pad, and keep the device away from heat sources. The device also has a thermal shutdown feature that turns it off when the junction temperature exceeds 160°C.
The HMC735LP5ETR has internal ESD protection, but it's still recommended to use external ESD protection devices, such as TVS diodes or ESD arrays, to protect the device from electrostatic discharge. Follow the guidelines in the application note AN-1369 for ESD protection.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

HMC735LP5ETR Overview

Use the download button to access the HMC735LP5ETR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HMC73, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
