HMC738LP4ETR footprint, schematic symbol and 3D model by Analog Devices

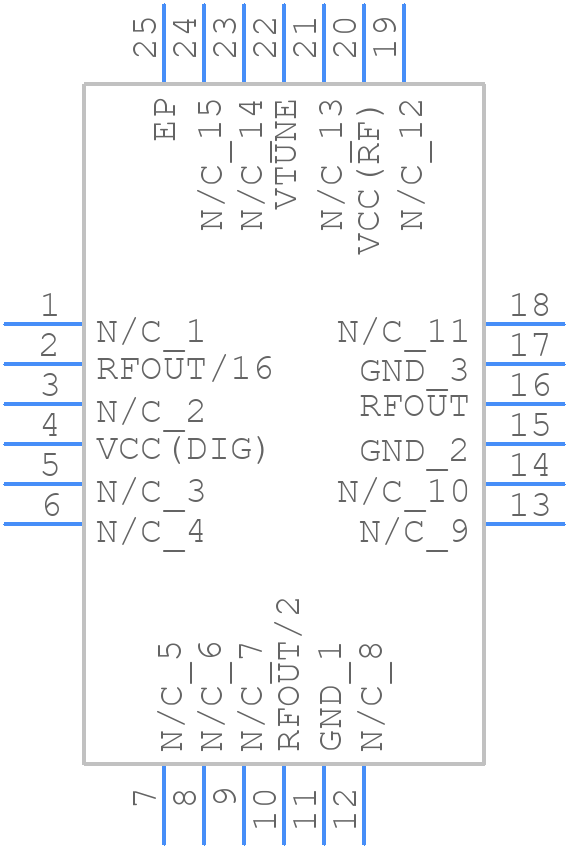

Symbol

click to zoom

PCB Footprints

HMC738LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 Lead 4X4mm SMT

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC738LP4ETR
Part Number HMC738LP4ETR
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 24 Lead 4X4mm SMT
Released Date Sep 3, 2026
Last Modified Date Sep 3, 2026 4:10 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC738LP4ETR Details

Manufacturer Part Number:
HMC738LP4ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LEADLESS, QFN, 24 PIN
Pin Count:
24
Manufacturer Package Code:
HCP-24-2
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Control Voltage-Max:
13 V
Control Voltage-Min:
1 V
JESD-609 Code:
e3
Modulation Sensitivity:
-90 MHz/V
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
24
Offset Frequency:
100 kHz
Operating Frequency-Max:
23900 MHz
Operating Frequency-Min:
20900 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
VOLTAGE CONTROLLED OSCILLATOR
Output Power:
15 dBm
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC24,.16SQ,20
Phase Noise:
-95 dBc/Hz
Physical Dimension:
4.1mm x 4.1mm x 1.0mm
Supply Current-Max:
220 mA
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed

HMC738LP4ETR Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
Ensure the VCC and VEE pins are properly decoupled with 100nF and 1uF capacitors, respectively. Also, ensure the bias voltage (VBIAS) is set to the recommended 3.3V or 5V, depending on the application.
The maximum power dissipation of the HMC738LP4ETR is 1.5W. Ensure proper heat sinking and thermal management to prevent overheating.
Use a compatible interface standard such as SPI, I2C, or parallel interface. Ensure the interface voltage levels are compatible with the microcontroller or FPGA, and use level translators if necessary.
The typical settling time of the HMC738LP4ETR is 100ns. However, this can vary depending on the specific application and output load.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

HMC738LP4ETR Overview

Use the download button to access the HMC738LP4ETR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HMC73, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
