HMC739LP4ETR footprint, schematic symbol and 3D model by Analog Devices

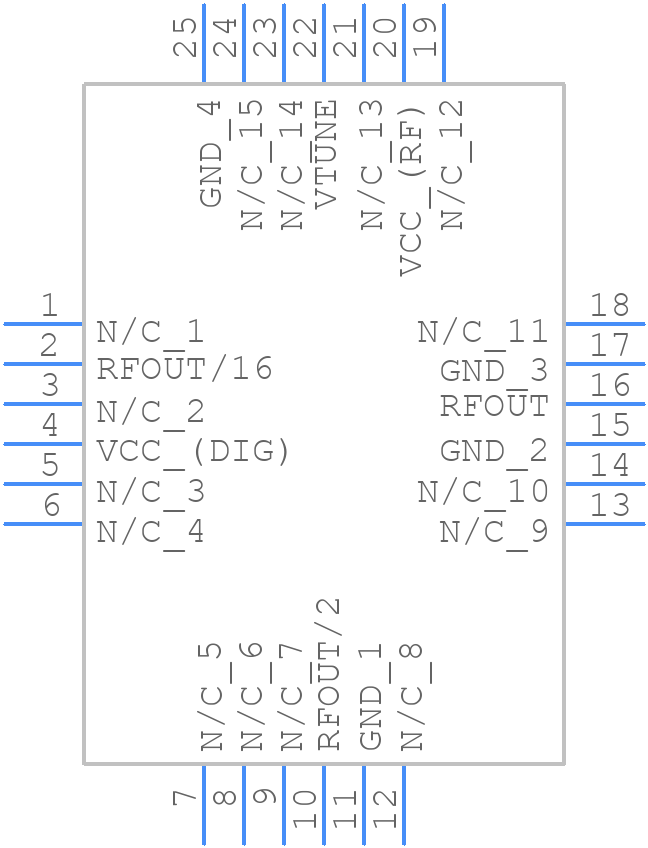

Symbol

click to zoom

PCB Footprints

HMC739LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC739LP4ETR
Part Number HMC739LP4ETR
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LFCSP_2026-1
Released Date Sep 3, 2026
Last Modified Date Sep 3, 2026 4:13 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC739LP4ETR Details

Manufacturer Part Number:
HMC739LP4ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LEADLESS, QFN 24 PIN
Pin Count:
24
Manufacturer Package Code:
HCP-24-2
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Control Voltage-Max:
13 V
Control Voltage-Min:
1 V
JESD-609 Code:
e3
Modulation Sensitivity:
-65 MHz/V
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
24
Offset Frequency:
100 kHz
Operating Frequency-Max:
26800 MHz
Operating Frequency-Min:
23800 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
VOLTAGE CONTROLLED OSCILLATOR
Output Power:
14 dBm
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC24,.16SQ,20
Packing Method:
TR
Phase Noise:
-93 dBc/Hz
Physical Dimension:
4.1mm x 4.1mm x 1.0mm
Supply Current-Max:
220 mA
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)

HMC739LP4ETR Frequently Asked Questions (FAQs)

Analog Devices provides a recommended PCB layout and thermal management guide in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency and high-power applications.
Analog Devices provides a variety of tools and resources, such as simulation models, evaluation boards, and application notes, to help optimize the HMC739LP4ETR for specific frequency bands or applications. Engineers can also consult with Analog Devices' technical support team for customized guidance.
Common sources of noise and interference in the HMC739LP4ETR include thermal noise, shot noise, and electromagnetic interference (EMI). To mitigate these effects, engineers can use techniques such as shielding, filtering, and grounding, as well as following proper PCB layout and thermal management practices.
Analog Devices provides detailed information on biasing and configuration in the datasheet and application notes. Engineers should carefully follow these guidelines to ensure the device is properly biased and configured for their specific application.
The HMC739LP4ETR is designed to meet high-reliability and ruggedness standards. Engineers can improve reliability and ruggedness by following proper handling and storage procedures, using adequate thermal management, and ensuring the device is operated within its recommended specifications.
