- Part Number HMC750LP4E
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - HMC750LP4E
- Released Date Sep 13, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC750LP4E Details
-
Manufacturer Part Number:
HMC750LP4E
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
4 X 4 MM, ROHS COMPLIANT, PLASTIC PACKAGE-24
-
Pin Count:
24
-
Manufacturer Package Code:
HCP-24-2
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Analog Devices Inc
HMC750LP4E Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary. Refer to the application note AN-1369 for more details.
-
Use a Smith chart or a network analyzer to optimize the input and output impedance matching networks for maximum gain and efficiency. The HMC750LP4E evaluation board can be used as a reference design.
-
The recommended voltage supply is +5V, and the current setting depends on the application. Typically, the current setting is around 200-300mA. Refer to the datasheet for more information.
-
Use a low-noise voltage regulator, ensure good power supply decoupling, and minimize the distance between the HMC750LP4E and the antenna. Additionally, use a high-quality RF choke and a low-loss PCB material.
-
The HMC750LP4E is designed to operate up to 6 GHz, but it can be used up to 10 GHz with some degradation in performance. However, the device is not guaranteed to meet all specifications above 6 GHz.
Trust Checks
Community Provided
System Verified
Community Approved
HMC750LP4E Overview

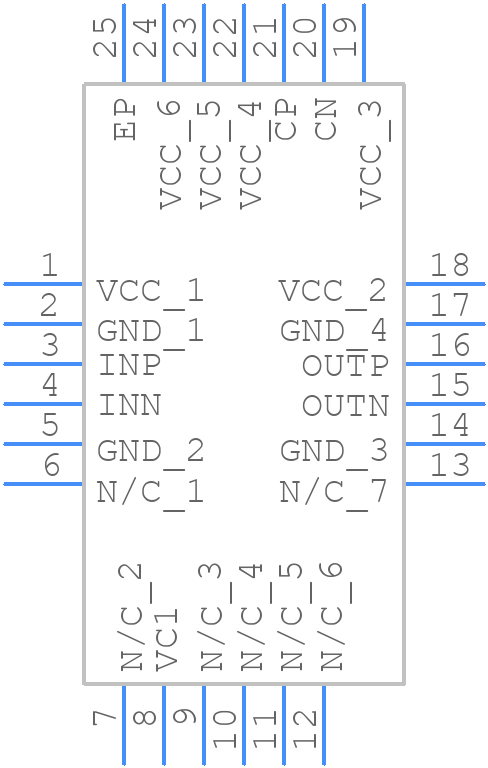

Use the download button to access the HMC750LP4E schematic symbol, PCB footprint, and 3D model.
