HMC764LP6CE - Analog Devices

Description: Fractional-N PLL with Integrated VCO SMT, 7.3 - 8.2 GHz

Download HMC764LP6CE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

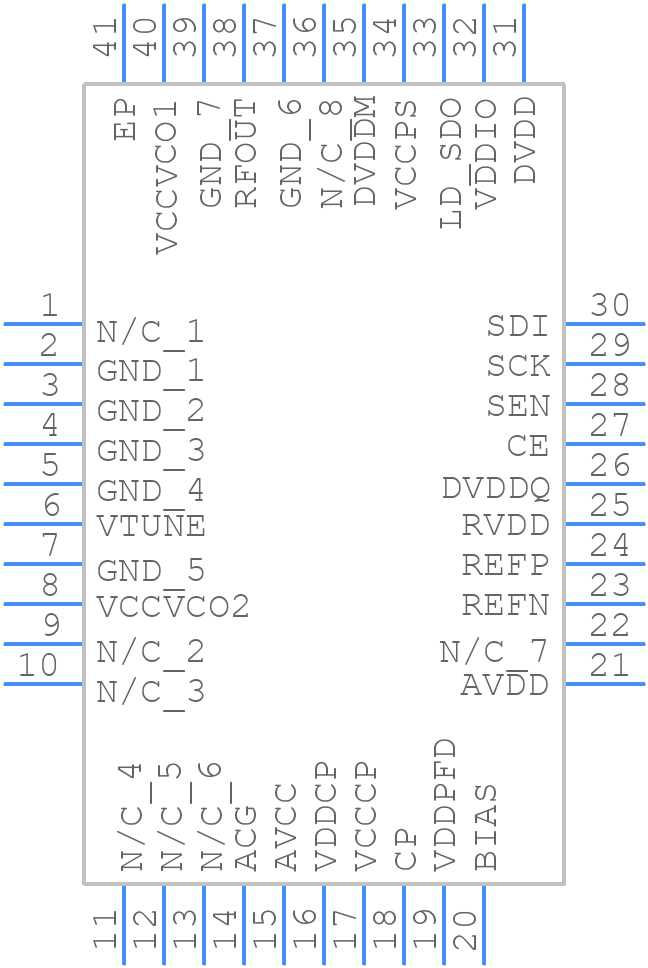

HMC764LP6CE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC764LP6CE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H839
click to zoom
3D Models
HMC764LP6CE - Analog Devices - 3D model - Quad Flat No-Lead - H839
click to zoom

HMC764LP6CE Details

  • Manufacturer Part Number:

    HMC764LP6CE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP
