HMC765LP6CETR - Analog Devices

Description: Fractional-N PLL with Integrated VCO SMT, 7.8 - 8.8 GHz

Download HMC765LP6CETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

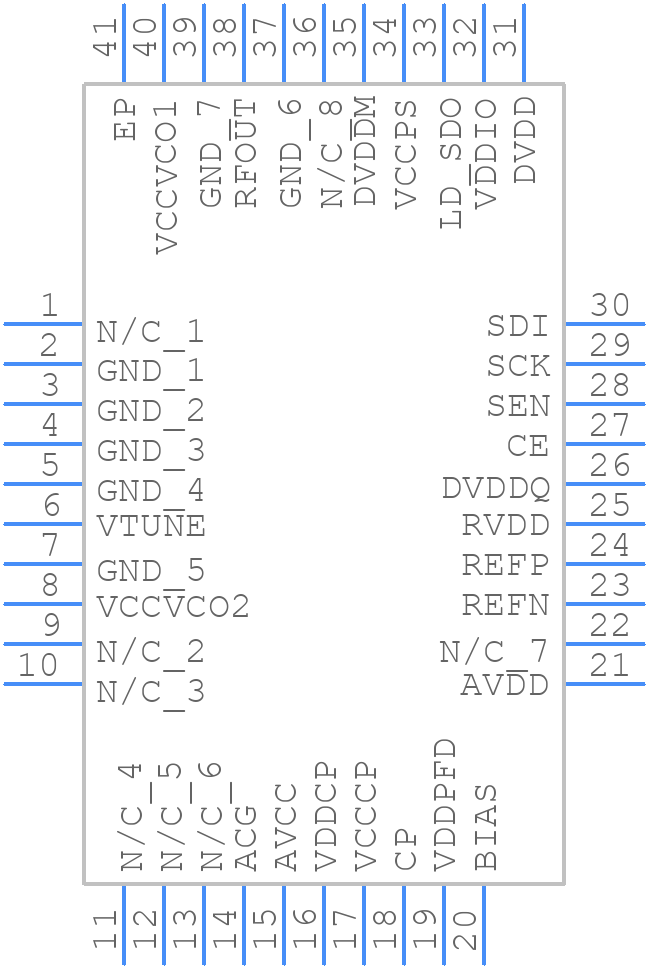

Symbol
HMC765LP6CETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC765LP6CETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H839
click to zoom
3D Models
HMC765LP6CETR - Analog Devices - 3D model - Quad Flat No-Lead - H839
click to zoom

HMC765LP6CETR Details

  • Manufacturer Part Number:

    HMC765LP6CETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    290 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

HMC765LP6CETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the VCC and VEE pins are properly decoupled with 0.1uF and 10uF capacitors, respectively. Also, ensure the bias voltage (VBIAS) is set to the recommended 5V ± 0.5V.
  • The maximum power dissipation of the HMC765LP6CETR is 1.5W. Ensure proper heat sinking and thermal management to prevent overheating.
  • Check the PCB layout for signal integrity issues, ensure proper decoupling and biasing, and verify the input and output impedance matching. Also, check for any signs of overheating or electrical overstress.
  • Yes, the HMC765LP6CETR is designed for high-reliability and high-temperature applications. However, ensure proper derating and thermal management to prevent overheating.
