HMC783LP6CETR - Analog Devices

Description: Fractional-N PLL with Integrated VCO SMT, 11.5 - 12.5 GHz

Download HMC783LP6CETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

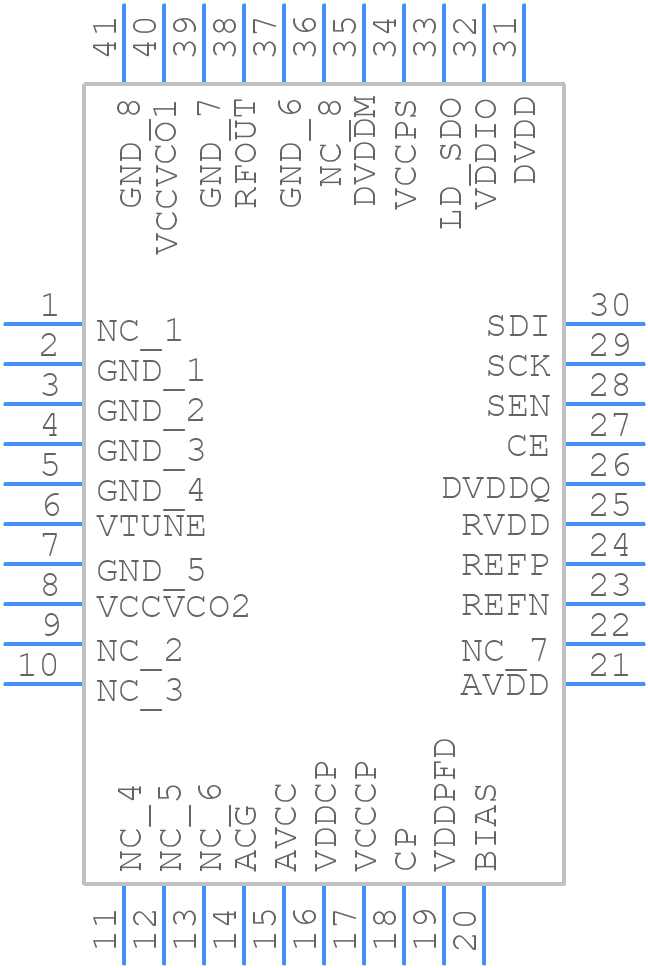

HMC783LP6CETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC783LP6CETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40 Lead 6 x 6 mm SMT
click to zoom
3D Models
HMC783LP6CETR - Analog Devices - 3D model - Quad Flat No-Lead - 40 Lead 6 x 6 mm SMT
click to zoom

HMC783LP6CETR Details

  • Manufacturer Part Number:

    HMC783LP6CETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    190 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

HMC783LP6CETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC783LP6CETR requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 10uF and 100nF capacitors in parallel.
  • The HMC783LP6CETR can operate up to 6 GHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout.
  • Minimize the noise figure by using a low-noise voltage regulator, keeping the signal traces short, and using a good quality PCB material with low dielectric loss.
  • The recommended operating temperature range for the HMC783LP6CETR is -40°C to 85°C. Operating outside this range may affect the device's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC783LP6CETR Overview

Use the download button to access the HMC783LP6CETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC78, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
