- Stock & Prices $ Price & Stock for HMC784AMS8GETR
- Part Number HMC784AMS8GETR
- Manufacturer Analog Devices
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - HMC784AMS8GETR
- Released Date Dec 29, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC784AMS8GETR Details
-
Manufacturer Part Number:
HMC784AMS8GETR
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
8
-
Manufacturer Package Code:
HRH-8-1
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
8.5
HMC784AMS8GETR Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using thermal pads and a heat sink if necessary.
-
Use the device's power-down mode, reduce the operating frequency, and optimize the voltage regulator module (VRM) design to minimize power consumption.
-
Use controlled impedance traces, minimize signal reflections, and ensure proper termination and routing to prevent signal degradation and crosstalk.
-
Use shielding, filtering, and grounding techniques to minimize EMI. Ensure proper PCB layout, component selection, and enclosure design to meet EMI standards.
-
Analog Devices Inc. performs various reliability tests, including temperature cycling, humidity testing, and mechanical stress testing, to ensure the device meets industry standards.
Trust Checks
Community Provided
System Verified
Community Approved
HMC784AMS8GETR Overview

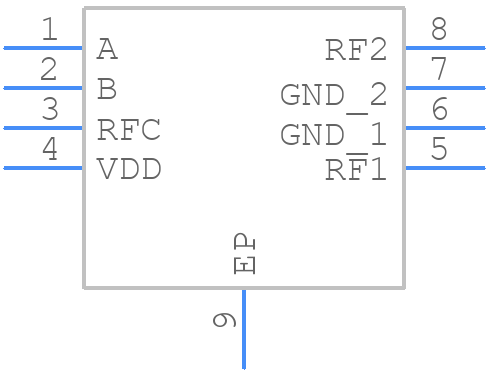

Use the download button to access the HMC784AMS8GETR schematic symbol, PCB footprint, and 3D model.
