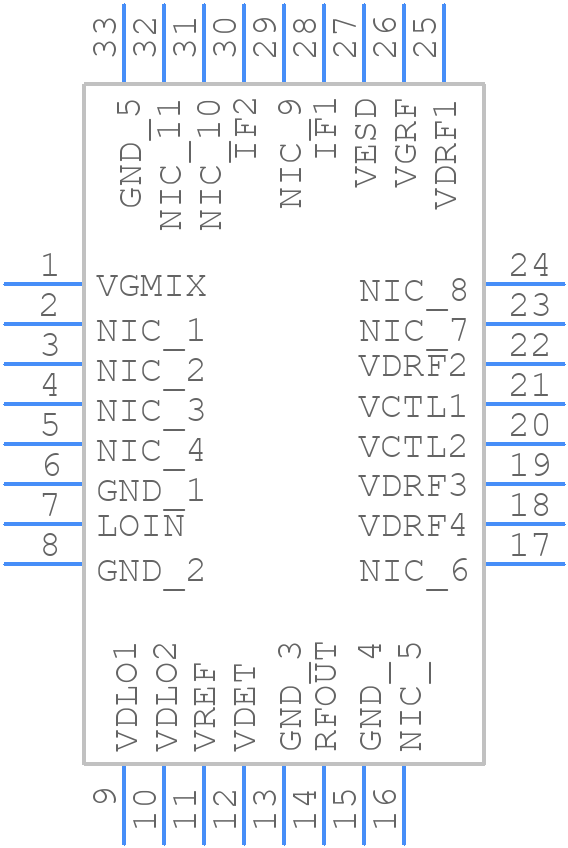

HMC7912LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC7912LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-32- 1
click to zoom
3D Models
HMC7912LP5E - Analog Devices - 3D model - Quad Flat No-Lead - HCP-32- 1
click to zoom

HMC7912LP5E Details

  • Manufacturer Part Number:

    HMC7912LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • IF Frequency-Max:

    3500 MHz

  • Input Power-Min (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • LO Tunable:

    YES

  • Mounting Feature:

    SURFACE MOUNT

  • Noise Figure-Max:

    14 dB

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Max:

    4 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    5 V

  • RF Output Frequency-Max:

    24000 MHz

  • RF Output Frequency-Min:

    21000 MHz

  • RF/Microwave Device Type:

    UP CONVERTER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • Up Conversion Gain-Min:

    10 dB

HMC7912LP5E Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC7912LP5E involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device should be placed near the RF input to minimize trace lengths.
  • To optimize the HMC7912LP5E for a specific frequency band, you can adjust the values of the external matching components (e.g., inductors, capacitors) to achieve the desired impedance match. You can use simulation tools like ADS or Genesys to model the device and optimize the matching network for your specific frequency band.
  • The maximum power handling capability of the HMC7912LP5E is dependent on the operating frequency and the specific application. However, as a general guideline, the device can handle input powers up to +20 dBm. Exceeding this power level may result in reduced performance, increased distortion, or even damage to the device.
  • To ensure proper biasing of the HMC7912LP5E, follow the recommended biasing scheme outlined in the datasheet. This typically involves applying a voltage to the VDD pin and using an external resistor to set the bias current. The recommended bias current is typically around 10-20 mA, but this may vary depending on the specific application.
  • The HMC7912LP5E is a high-power device that can generate significant heat. To ensure reliable operation, it's essential to provide adequate thermal management. This can be achieved by using a heat sink, thermal vias, and thermal pads on the PCB. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
