HMC7912LP5ETR - Analog Devices

Description: Up/Down Conv Mixer 24GHz 32-Pin LFCSP EP T/R

Download HMC7912LP5ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

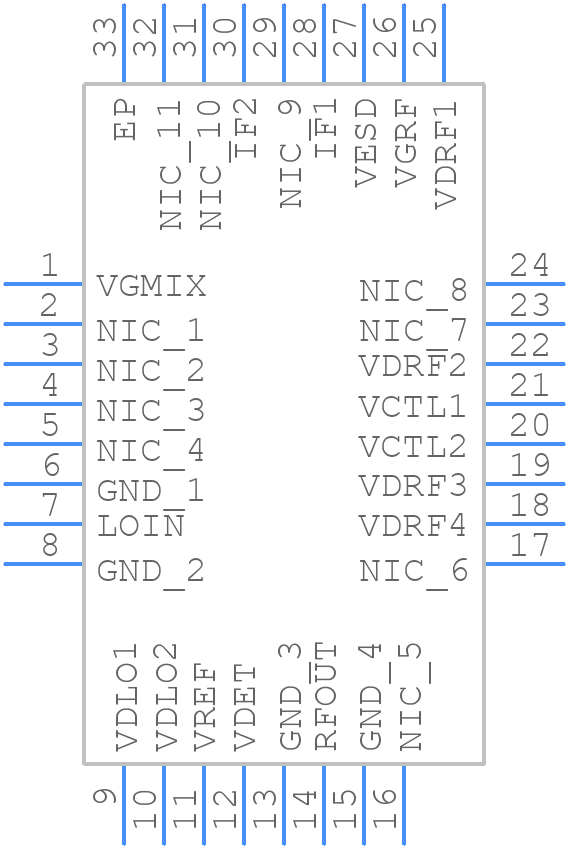

HMC7912LP5ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC7912LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.85 mm Package Height
click to zoom
3D Models
HMC7912LP5ETR - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.85 mm Package Height
click to zoom

HMC7912LP5ETR Details

  • Manufacturer Part Number:

    HMC7912LP5ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-04-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • IF Frequency-Max:

    3500 MHz

  • Input Power-Min (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • LO Tunable:

    YES

  • Mounting Feature:

    SURFACE MOUNT

  • Noise Figure-Max:

    14 dB

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Max:

    4 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    5 V

  • RF Output Frequency-Max:

    24000 MHz

  • RF Output Frequency-Min:

    21000 MHz

  • RF/Microwave Device Type:

    UP CONVERTER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • Up Conversion Gain-Min:

    10 dB

HMC7912LP5ETR Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC7912LP5ETR involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1369 for more details.
  • The HMC7912LP5ETR requires a bias voltage of 5V ± 10% on the VCC pin, and a bias current of 10mA to 20mA on the VBIAS pin. Ensure that the bias voltage and current are stable and noise-free to achieve optimal performance.
  • The maximum power dissipation of the HMC7912LP5ETR is 1.5W. Ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended operating range to avoid overheating.
  • Yes, the HMC7912LP5ETR can be used in switching power supply applications. However, ensure that the device is properly bypassed and that the input and output capacitors are selected to handle the high-frequency switching noise.
  • Common issues with the HMC7912LP5ETR can be troubleshooted by checking the PCB layout, ensuring proper biasing and bypassing, and verifying that the input and output impedances are matched. Refer to the application note AN-1369 for more troubleshooting tips.
