HMC792ALP4ETR - Analog Devices

Description: 6Bit 0.25dBStep 15.75dB 6GHz 24-Pin LFCSP EP T/R

Download HMC792ALP4ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

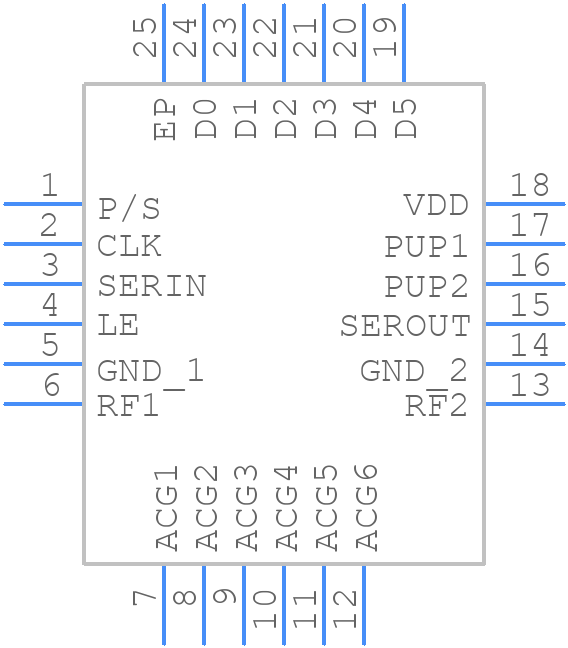

HMC792ALP4ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC792ALP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC1020LP4E
click to zoom
3D Models
HMC792ALP4ETR - Analog Devices - 3D model - Quad Flat No-Lead - HMC1020LP4E
click to zoom

HMC792ALP4ETR Details

  • Manufacturer Part Number:

    HMC792ALP4ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    CMOS COMPATIBLE

  • Attenuation-Nom:

    15.75 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    28.98 dBm

  • Insertion Loss-Max:

    4 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    3.3/5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.29

HMC792ALP4ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity and heat dissipation by using a heat sink and thermal interface material.
  • Use the device's gain-bandwidth product to determine the optimal gain and bandwidth for your application. Consult the datasheet's application notes and Analog Devices' support resources for guidance.
  • Operating the device beyond the recommended conditions can lead to reduced performance, reliability, and lifespan. Ensure that the device operates within the specified temperature, voltage, and current ranges to maintain optimal performance and reliability.
  • Follow proper PCB layout and shielding techniques, use EMI filters, and ensure that the device is properly grounded and decoupled to minimize EMI and ensure EMC compliance.
  • The HMC792ALP4ETR has a high reliability rating, with a typical MTBF of >100 million hours. Consult the datasheet and Analog Devices' reliability reports for more information.
