HMC794LP3ETR - Analog Devices

Description: 2 GHz Low Noise Programmable Divider (N = 1 to 4) SMT

Download HMC794LP3ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

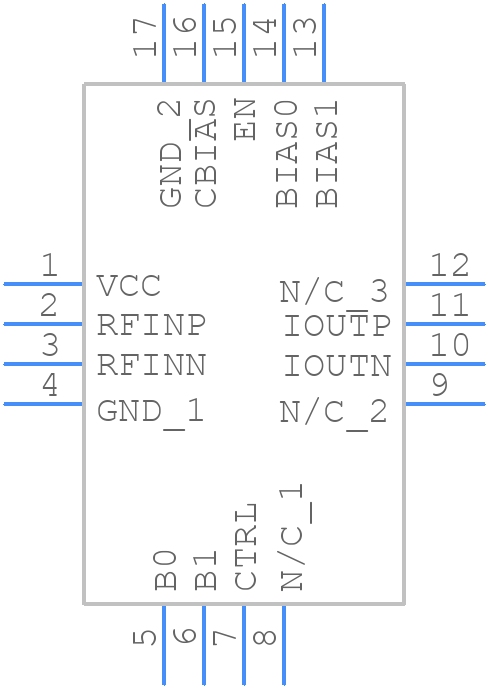

HMC794LP3ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC794LP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-1
click to zoom
3D Models
HMC794LP3ETR - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-1
click to zoom

HMC794LP3ETR Details

  • Manufacturer Part Number:

    HMC794LP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Matte Tin (Sn)

HMC794LP3ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the VCC and VEE pins are properly decoupled with 100nF and 1uF capacitors, respectively. Also, ensure the bias voltage (VBIAS) is set to the recommended 3.3V or 5V, depending on the application.
  • The maximum power consumption of the HMC794LP3ETR is approximately 1.2W, assuming a 5V supply voltage and maximum output current of 200mA.
  • Check the power supply voltage, decoupling capacitors, and PCB layout for any issues. Use an oscilloscope to verify the output signal and check for any signs of oscillation or instability.
  • The HMC794LP3ETR is rated for operation up to 125°C. However, it's recommended to derate the output current and power consumption at higher temperatures to ensure reliable operation.
