HMC797APM5E - Analog Devices

Description: RF Amplifier Amplifiers

Download HMC797APM5E Model

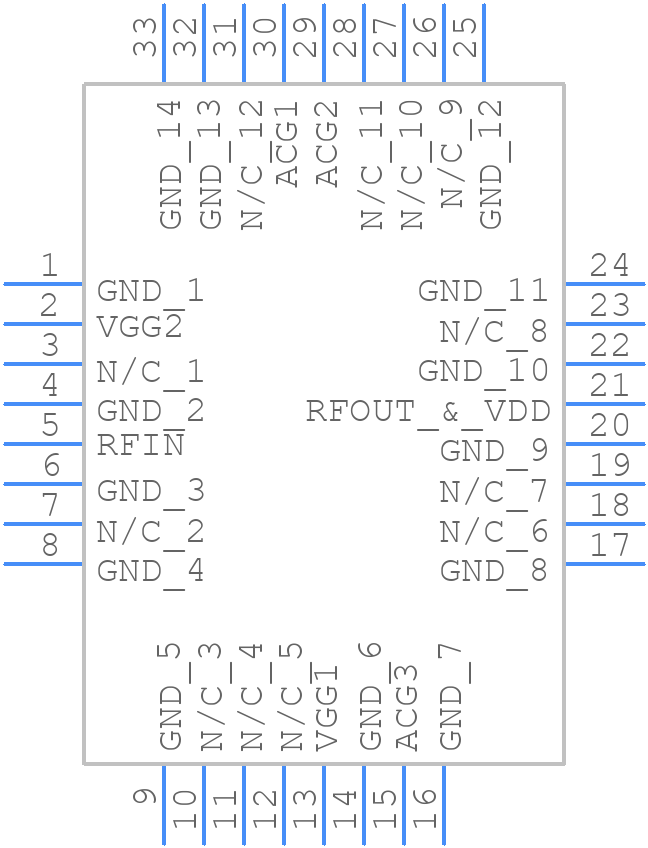

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC797APM5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CG-32-2
click to zoom
3D Models
HMC797APM5E - Analog Devices  - 3D model - Quad Flat No-Lead - CG-32-2
click to zoom

HMC797APM5E Details

  • Manufacturer Part Number:

    HMC797APM5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CG-32-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    13 dB

  • Input Power-Max (CW):

    27 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    22000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    10 V

  • RF/Microwave Device Type:

    POWER AMPLIFIER

  • Supply Current-Max:

    400 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    7

HMC797APM5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary. Refer to the application note AN-1369 for more details.
  • Use the HMC797APM5E evaluation board as a reference and follow the application note AN-1369 for guidance on biasing and matching network design. You can also use simulation tools like ADS or AWR Microwave Office to optimize the design.
  • Use a reflow soldering process with a peak temperature of 260°C. Ensure the device is handled by the edges to prevent damage. Refer to the application note AN-1369 for more details on assembly and soldering guidelines.
  • Check the biasing and matching networks for any impedance mismatches. Ensure the device is properly terminated and the input/output impedances are matched. Use a spectrum analyzer to identify any unwanted oscillations or spurious signals.
  • The HMC797APM5E meets the standards for reliability and environmental testing as per the MIL-STD-883 and JESD22-A114 standards. Refer to the datasheet for more details on the specific testing and qualification procedures.
