HMC797LP5E - Analog Devices

Description: ANALOG DEVICES - HMC797LP5E - RF Amplifier IC, 13.5 dB Gain / 6 dB Noise, DC to 22 GHz, 9 V to 11 V supply, QFN-32

Download HMC797LP5E Model

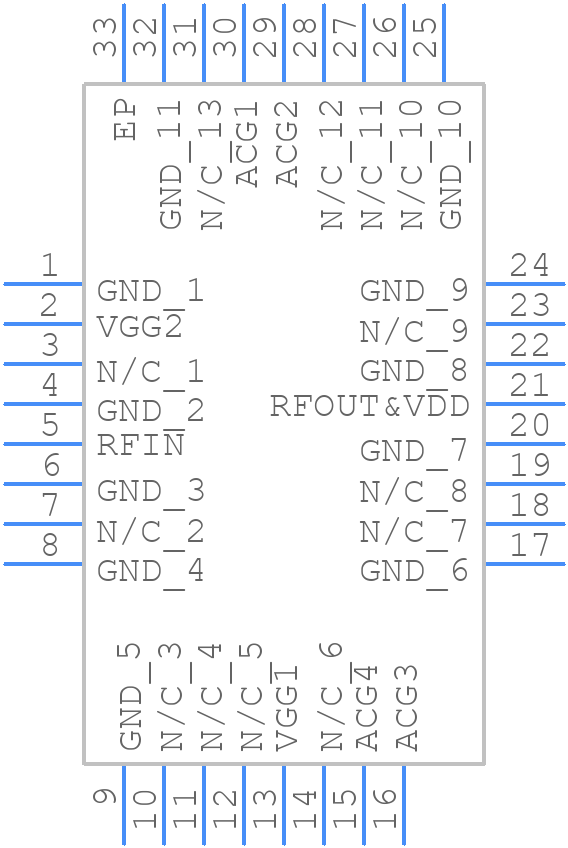

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC797LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - msl1
click to zoom
3D Models
HMC797LP5E - Analog Devices  - 3D model - Quad Flat No-Lead - msl1
click to zoom

HMC797LP5E Details

  • Manufacturer Part Number:

    HMC797LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    11 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    22000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    10 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Supply Current-Max:

    440 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    7

HMC797LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC797LP5E requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 10mA.
  • The HMC797LP5E can operate up to 6 GHz, but the optimal frequency range is between 2 GHz and 4 GHz for best performance.
  • The HMC797LP5E has a parallel interface. Use a 5V-tolerant microcontroller or FPGA with a 5V power supply. Ensure the interface signals are properly terminated and matched to the PCB impedance.
  • The typical current consumption of the HMC797LP5E is 10mA, but it can vary depending on the operating frequency and bias conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC797LP5E Overview

Use the download button to access the HMC797LP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC79, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to HMC797LP5E

Showing 0 results

HMC797LP5E Alternates

Showing results

Image Part Number Model
Part Image HMC797LP5ETR Analog Devices Inc

Wide Band Medium Power Amplifier, 1 Func, GAAS
