HMC798ALC4TR-R5 - Analog Devices

Description: RF Mixer IC VSAT 24GHz ~ 34GHz 24-CLCC (3.9x3.9), Single positive supply: 5 V at 97 mA

Download HMC798ALC4TR-R5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

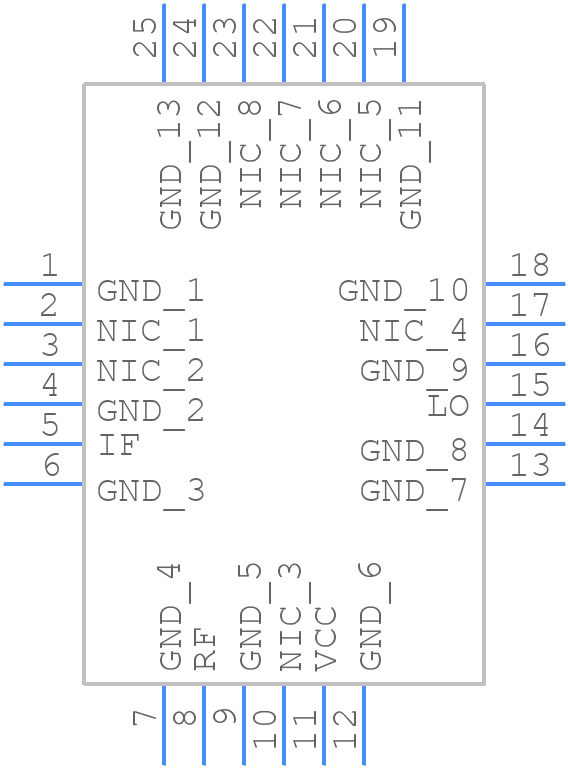

Symbol
HMC798ALC4TR-R5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC798ALC4TR-R5 - Analog Devices PCB footprint - Other - Other - E-24-1_2026
click to zoom
3D Models
HMC798ALC4TR-R5 - Analog Devices - 3D model - Other - E-24-1_2026
click to zoom

HMC798ALC4TR-R5 Details

  • Manufacturer Part Number:

    HMC798ALC4TR-R5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    E-24-1

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-06-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    13.5 dB

  • Input Power-Max (CW):

    13 dBm

  • Operating Frequency-Max:

    34000 MHz

  • Operating Frequency-Min:

    24000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DOUBLE BALANCED

HMC798ALC4TR-R5 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the HMC798ALC4TR-R5 can be found in the application note AN-1369 from Analog Devices Inc. It provides guidelines for PCB layout, thermal management, and decoupling to ensure optimal performance and minimize noise.
  • The HMC798ALC4TR-R5 requires calibration to ensure accurate magnetic field measurements. Calibration involves applying a known magnetic field and adjusting the device's internal registers to compensate for offset and sensitivity errors. The calibration procedure is described in the device's datasheet and application notes.
  • The HMC798ALC4TR-R5 has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the user should consult the datasheet and application notes for guidance on temperature-related performance limitations.
  • The HMC798ALC4TR-R5 has a SPI-compatible interface that can be easily interfaced with a microcontroller or FPGA. The device's datasheet provides detailed information on the interface protocol, timing, and pinout. Additionally, Analog Devices Inc. provides example code and reference designs for popular microcontrollers and FPGAs.
  • The typical current consumption of the HMC798ALC4TR-R5 is around 10mA, but it can vary depending on the operating mode, frequency, and output data rate. The device's datasheet provides detailed information on power consumption and power-down modes to minimize power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC798ALC4TR-R5 Overview

Use the download button to access the HMC798ALC4TR-R5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC79, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
