HMC7992LP3DE - Analog Devices

Description: RF Switch SP4T 100MHz to 6GHz 25dB Automotive 16-Pin LFCSP EP T/R

Download HMC7992LP3DE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

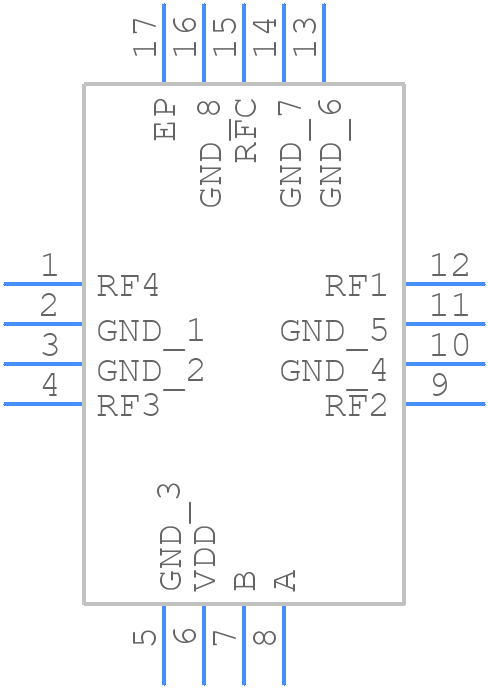

Symbol
HMC7992LP3DE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC7992LP3DE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-38)
click to zoom
3D Models
HMC7992LP3DE - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-38)
click to zoom

HMC7992LP3DE Details

  • Manufacturer Part Number:

    HMC7992LP3DE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220-4, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-38

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    33 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    35 dBm

  • Insertion Loss-Max:

    1.5 dB

  • Isolation-Min:

    25 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.15 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3.3/5 V

  • RF/Microwave Device Type:

    SP4T

  • Supply Current-Max:

    0.23 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)
