HMC802ALP3E - Analog Devices

Description: Attenuators DATT, 1BIT, 20dB, DC-10GHz

Download HMC802ALP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

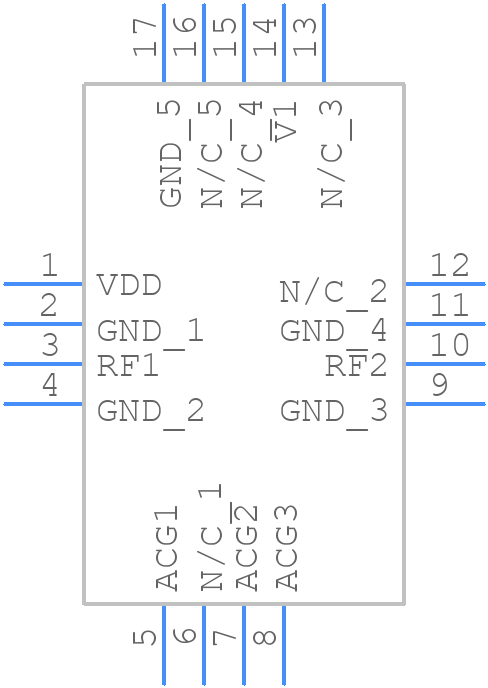

Symbol
HMC802ALP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC802ALP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-LEAD QFN
click to zoom
3D Models
HMC802ALP3E - Analog Devices - 3D model - Quad Flat No-Lead - 16-LEAD QFN
click to zoom

HMC802ALP3E Details

  • Manufacturer Part Number:

    HMC802ALP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMT, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    TTL COMPATIBLE

  • Attenuation-Nom:

    20 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    29.3 dBm

  • Insertion Loss-Max:

    3.5 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    10000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.12

HMC802ALP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
  • Use a Smith chart or a network analyzer to optimize the input and output impedance matching networks for maximum power transfer. Consider using a pi-network or a T-network topology.
  • A voltage-controlled biasing scheme is recommended, with a voltage regulator and a voltage reference to ensure stable operation. Ensure the bias voltage is within the recommended range.
  • Use a shielded enclosure, keep the amplifier away from other noise-sensitive components, and ensure good grounding and decoupling. Use EMI filters and shielding on the input and output lines if necessary.
  • The recommended operating temperature range is -40°C to +85°C. Ensure proper thermal management to prevent overheating, especially in high-power applications.
