HMC802ALP3ETR - Analog Devices

Description: ± 0.6 dB Typical Step Error Low Insertion Loss: 3 dB High IP3: +55 dBm Single Control Line TTL/CMOS Compatible Control Single +5V Supply 16 Lead 3x3mm SMT Package: 9mm²

Download HMC802ALP3ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

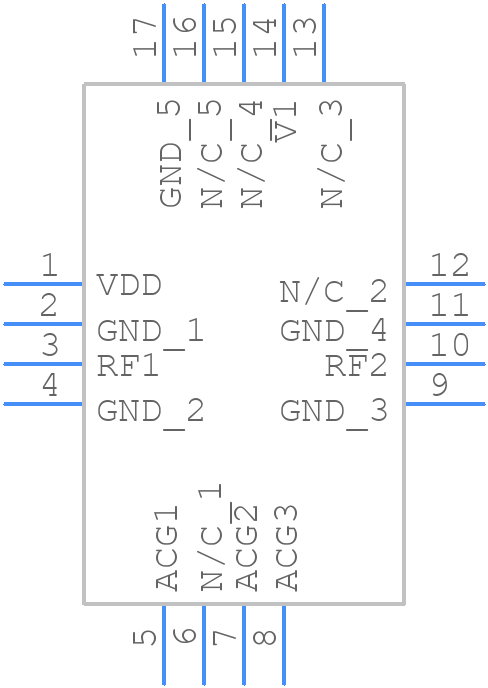

HMC802ALP3ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC802ALP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 Lead 3x3mm SMT Package: 9mm²
click to zoom
3D Models
HMC802ALP3ETR - Analog Devices - 3D model - Quad Flat No-Lead - 16 Lead 3x3mm SMT Package: 9mm²
click to zoom

HMC802ALP3ETR Details

  • Manufacturer Part Number:

    HMC802ALP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

HMC802ALP3ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC802ALP3ETR requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC802ALP3ETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC802ALP3ETR has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and that the clock and data signals are synchronized.
  • The typical current consumption of the HMC802ALP3ETR is around 350mA, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC802ALP3ETR Overview

Use the download button to access the HMC802ALP3ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC80, or try a keyword search, such as RF/Microwave Attenuators
