HMC8038LP4CE - Analog Devices

Description: RF Switch ICs High isolation, non-reflective, single s

Download HMC8038LP4CE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

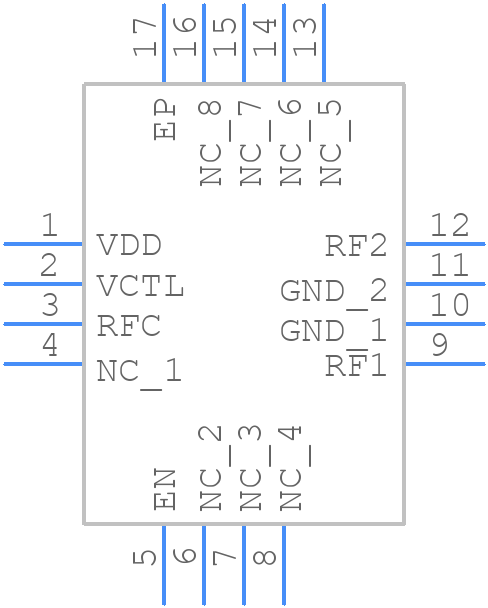

HMC8038LP4CE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC8038LP4CE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-40
click to zoom
3D Models
HMC8038LP4CE - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-40
click to zoom

HMC8038LP4CE Details

  • Manufacturer Part Number:

    HMC8038LP4CE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-40

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.4 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

HMC8038LP4CE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the VCC pin is connected to a stable 3.3V or 5V power supply, and the VEE pin is connected to a stable -3.3V or -5V power supply. Also, ensure the bias resistors (RBIAS) are properly sized to set the desired output current.
  • The maximum input power that the HMC8038LP4CE can handle is +10 dBm. Exceeding this limit may cause damage to the device or affect its performance.
  • Use a spectrum analyzer to check the output spectrum for spurs or distortion. Verify the input signal is within the recommended power range and the device is properly biased. Check the PCB layout for any noise coupling or signal integrity issues.
  • The HMC8038LP4CE is rated for operation up to 85°C. However, the device's performance may degrade at higher temperatures. Ensure proper thermal management and consider derating the device's performance at high temperatures.
