HMC8073LP3DE - Analog Devices

Description: Attenuators 0.6-3.0GHz, 6-bit Dig Atten

Download HMC8073LP3DE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

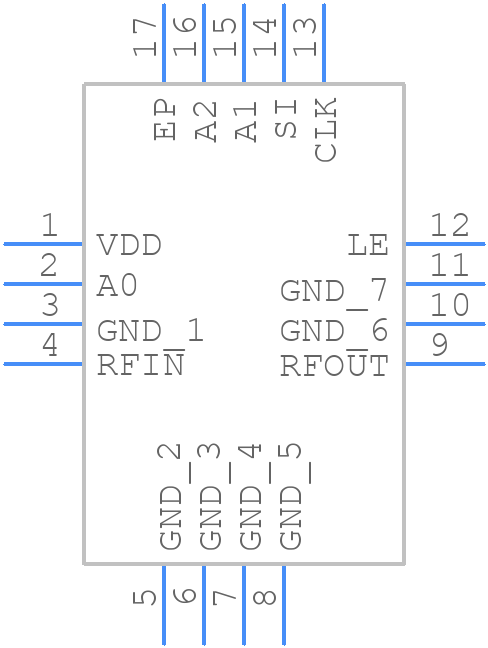

HMC8073LP3DE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC8073LP3DE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-38_2021
click to zoom
3D Models
HMC8073LP3DE - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-38_2021
click to zoom

HMC8073LP3DE Details

  • Manufacturer Part Number:

    HMC8073LP3DE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220-VEED-4, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-38

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    CMOS COMPATIBLE

  • Attenuation-Nom:

    31.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    2.2 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    600 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    2.1

HMC8073LP3DE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the VCC pin is connected to a stable 3.3V or 5V power supply, and the VEE pin is connected to a stable -3.3V or -5V power supply. Also, ensure the bias resistors are correctly sized to set the desired output voltage.
  • The maximum input power is +10 dBm. Exceeding this may cause compression or damage to the device.
  • Check the power supply voltages, ensure proper biasing, and verify the input signal is within the recommended range. Use a spectrum analyzer to check for spurious signals or harmonics.
  • No, the HMC8073LP3DE is not designed for switching applications. It's intended for linear amplification of small signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC8073LP3DE Overview

Use the download button to access the HMC8073LP3DE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC80, or try a keyword search, such as RF/Microwave Attenuators
