HMC814LC3B - Analog Devices

Description: RF Amplifier x2 Active mult SMT, 13 - 24.6 GHz Fout

Download HMC814LC3B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

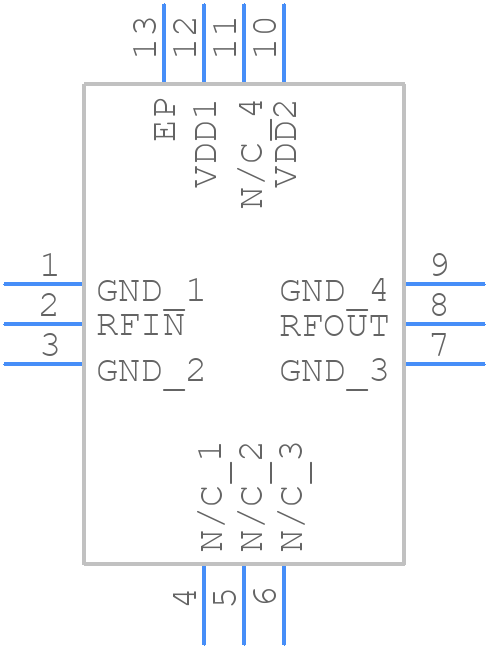

HMC814LC3B - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC814LC3B - Analog Devices PCB footprint - Other - Other - HMC573LC3B-2
click to zoom
3D Models
HMC814LC3B - Analog Devices - 3D model - Other - HMC573LC3B-2
click to zoom

HMC814LC3B Details

  • Manufacturer Part Number:

    HMC814LC3B

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LEADLESS, SMT, 12 PIN

  • Pin Count:

    12

  • Manufacturer Package Code:

    E-12-1

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    12300 MHz

  • Operating Frequency-Min:

    6500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold/Nickel (Au/Ni)
