A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a thermal management system.
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a load-pull analysis to determine the optimal impedance for maximum gain and efficiency.
Operate the device within the recommended temperature range (-40°C to 85°C) and ensure a stable power supply voltage. Avoid exceeding the maximum ratings for voltage, current, and power dissipation.
Use a systematic approach to troubleshoot, starting with a review of the PCB layout, component values, and soldering quality. Check for signs of overheating, and verify that the device is operated within the recommended conditions.
Handle the device with ESD-protective equipment and follow proper handling procedures to prevent damage. Ensure that the device is properly grounded during handling and storage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HMC8191LC4TR Overview

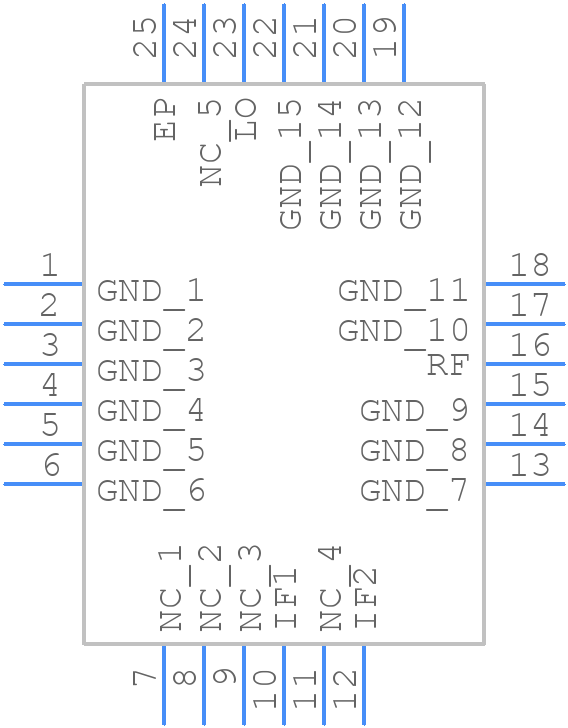

Use the download button to access the HMC8191LC4TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC81,
or try a keyword search, such as RF/Microwave Mixers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
