HMC8193LC4 - Analog Devices

Description: RF Mixer 2.5 GHz to 8.5 GHz I/Q Mixer

Download HMC8193LC4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

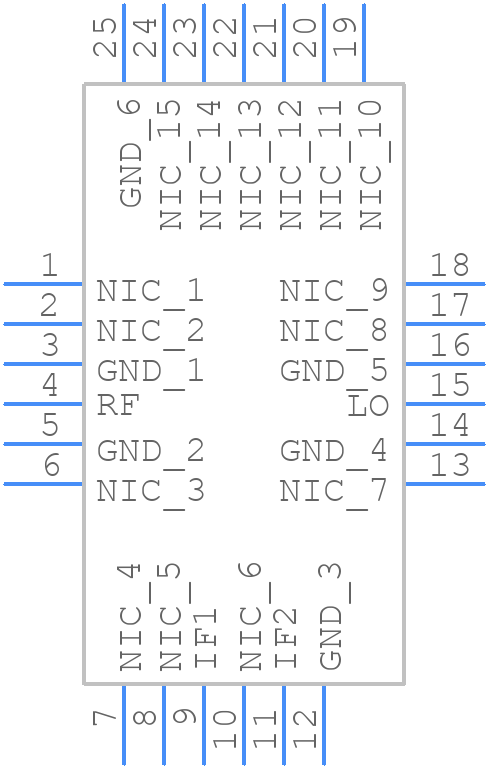

HMC8193LC4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC8193LC4 - Analog Devices PCB footprint - Other - Other - E-24-1_2024
click to zoom
3D Models
HMC8193LC4 - Analog Devices - 3D model - Other - E-24-1_2024
click to zoom

HMC8193LC4 Details

  • Manufacturer Part Number:

    HMC8193LC4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    E-24-1

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    11 dB

  • Input Power-Max (CW):

    21 dBm

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    8500 MHz

  • Operating Frequency-Min:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    IMAGE REJECTION

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

HMC8193LC4 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling. Use a common mode choke or a ferrite bead to filter the power supply lines.
  • The HMC8193LC4 requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 10uF and 100nF capacitors. The VCC pin should be connected to a 5V power supply, and the VEE pin should be connected to ground.
  • The maximum input power that the HMC8193LC4 can handle is +10 dBm. Exceeding this limit may cause damage to the device or affect its performance.
  • The HMC8193LC4 is a broadband amplifier, but it can be optimized for a specific frequency band by adjusting the input and output matching networks. Use a network analyzer to measure the S-parameters and optimize the matching networks for the desired frequency band.
  • The recommended operating temperature range for the HMC8193LC4 is -40°C to +85°C. Operating the device outside this range may affect its performance or reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC8193LC4 Overview

Use the download button to access the HMC8193LC4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC81, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
