HMC828LP6CETR - Analog Devices

Description: Fractional-N PLL with Integrated VCO SMT, 1285 - 1415 MHz

Download HMC828LP6CETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

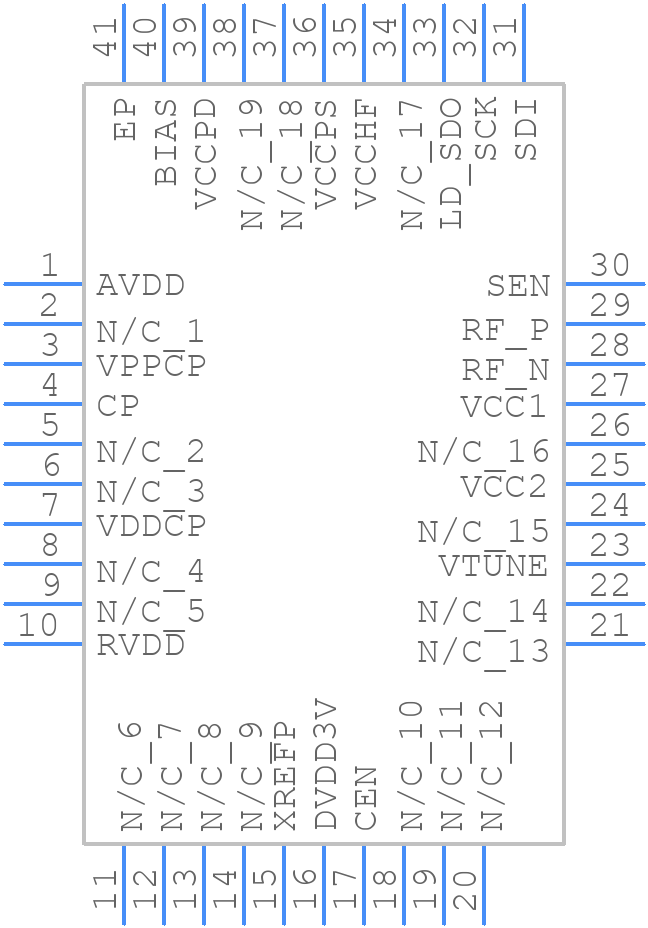

HMC828LP6CETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC828LP6CETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H783
click to zoom
3D Models
HMC828LP6CETR - Analog Devices - 3D model - Quad Flat No-Lead - H783
click to zoom

HMC828LP6CETR Details

  • Manufacturer Part Number:

    HMC828LP6CETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

HMC828LP6CETR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance can be found in the HMC828LP6CETR evaluation board documentation and layout files, which are available on the Analog Devices website. It's essential to follow the recommended layout to minimize signal reflections, crosstalk, and other performance-degrading effects.
  • The output of the HMC828LP6CETR should be terminated with a 50-ohm load to ensure maximum power transfer and minimize signal reflections. A DC-blocking capacitor may also be required to prevent damage to the device or the load.
  • The maximum operating temperature range for the HMC828LP6CETR is -40°C to 85°C. However, the device's performance may degrade at higher temperatures, and it's essential to ensure proper heat sinking and thermal management to maintain reliable operation.
  • While the HMC828LP6CETR is designed for 50-ohm systems, it can be used in non-50-ohm systems with proper impedance matching. However, this may require additional circuitry and may affect the device's performance and power handling capabilities.
  • Troubleshooting common issues with the HMC828LP6CETR typically involves checking the device's operating conditions, such as power supply voltage, temperature, and output loading. It's also essential to verify that the device is properly soldered and that the PCB layout is correct. Analog Devices provides application notes and technical support resources to help troubleshoot and resolve common issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC828LP6CETR Overview

Use the download button to access the HMC828LP6CETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC82, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
