HMC832ALP6GE - Analog Devices

Description: Phase Locked Loops - PLL WBand RF PLL VCO, 25-3000MHz 25 MHz to 3000 MHz Fractional-N PLL with Integrated VCO

Download HMC832ALP6GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

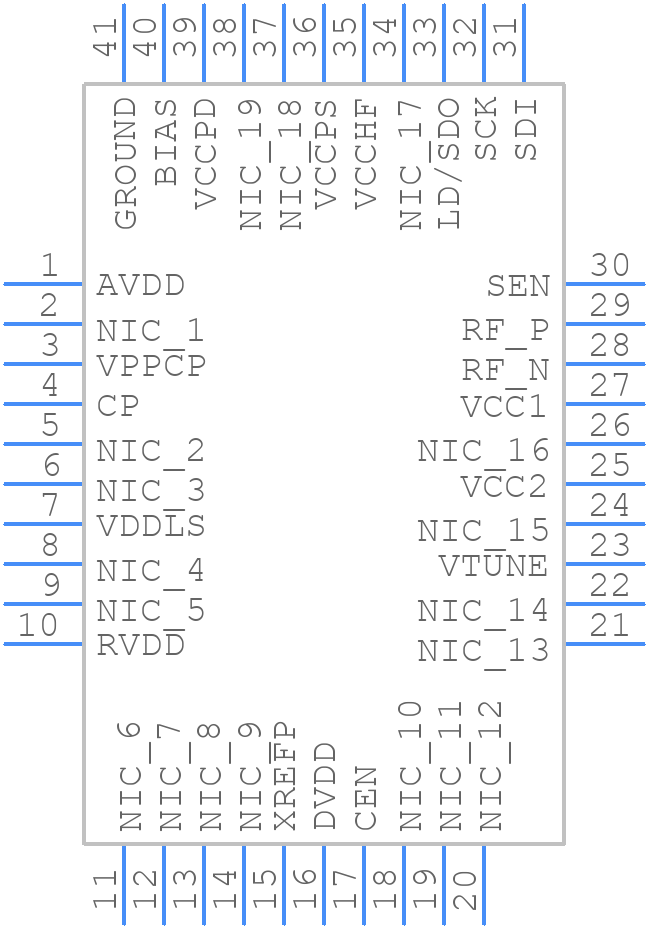

HMC832ALP6GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC832ALP6GE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - . 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] 6 mm × 6 mm Body, Very Thin Quad (HCP-40-1)
click to zoom
3D Models
HMC832ALP6GE - Analog Devices - 3D model - Quad Flat No-Lead - . 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ] 6 mm × 6 mm Body, Very Thin Quad (HCP-40-1)
click to zoom

HMC832ALP6GE Details

  • Manufacturer Part Number:

    HMC832ALP6GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

HMC832ALP6GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
  • Use a high-quality voltage regulator, decouple the power supply with 10nF and 100nF capacitors, and ensure a low-jitter clock source. Also, optimize the PCB layout to minimize noise coupling.
  • Use 50Ω termination for the input and output ports, and ensure that the transmission lines are properly matched to minimize reflections and signal degradation.
  • Use the SPI interface to program the device's registers to configure the frequency band, modulation scheme, and other parameters. Refer to the datasheet and programming guide for details.
  • Power up the device in the following sequence: VCC, VDD, and then enable the clock. Power down in the reverse sequence. Ensure that the clock is disabled before powering down.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC832ALP6GE Overview

Use the download button to access the HMC832ALP6GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC83, or try a keyword search, such as Cellular Telephone Circuits
