HMC832LP6GE - Analog Devices

Description: Integer-N/Fractional-N, VCO IC 3GHz 1 40-VFQFN Exposed Pad

Download HMC832LP6GE Model

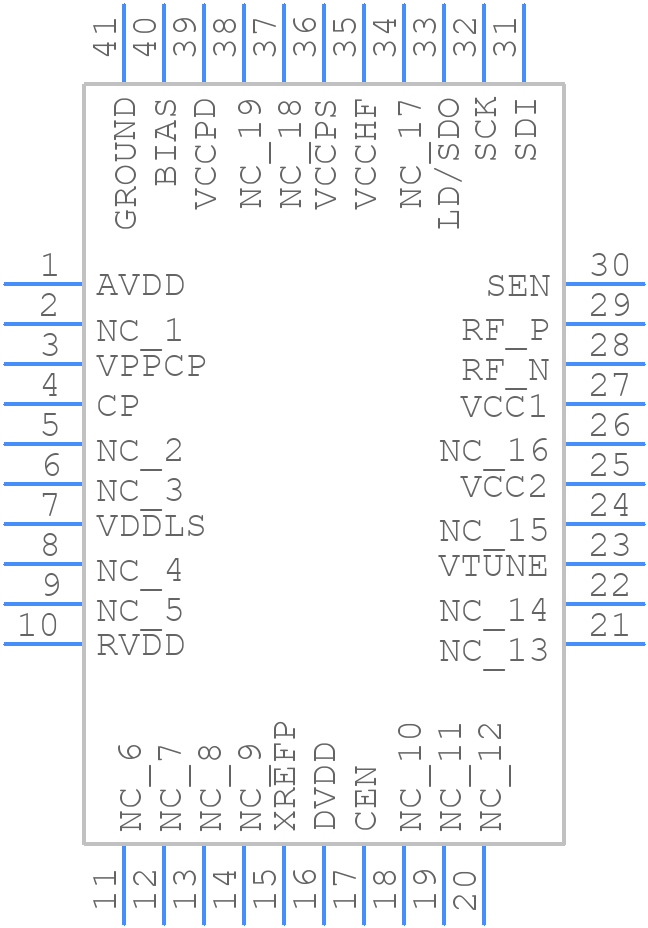

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC832LP6GE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Quad Flat No-Lead Package [QFN] 6 mm × 6 mm Body, Very Thin Quad
click to zoom
3D Models
HMC832LP6GE - Analog Devices  - 3D model - Quad Flat No-Lead - 40-Lead Quad Flat No-Lead Package [QFN] 6 mm × 6 mm Body, Very Thin Quad
click to zoom

HMC832LP6GE Details

  • Manufacturer Part Number:

    HMC832LP6GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    6 X 6 MM, ROHS COMPLIANT, PLASTIC, SMT-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

HMC832LP6GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the VCC and VEE pins are properly decoupled with 100nF and 1uF capacitors, respectively. Also, ensure the bias voltage (VBIAS) is set to the recommended 3.3V or 5V, depending on the application.
  • The HMC832LP6GE can handle up to 30dBm of input power. Exceeding this limit may cause damage to the device.
  • Check the PCB layout for any signs of resonance or oscillation. Ensure the device is properly biased and decoupled. Also, check the input and output impedance matching to prevent reflections and oscillations.
  • Yes, the HMC832LP6GE can be used in a push-pull configuration to achieve higher output power and improved linearity. However, ensure proper impedance matching and biasing to prevent oscillations.
