HMC832LP6GETR - Analog Devices

Description: Phase Locked Loops - PLL WBand RF PLL VCO, 25-3000MHz

Download HMC832LP6GETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

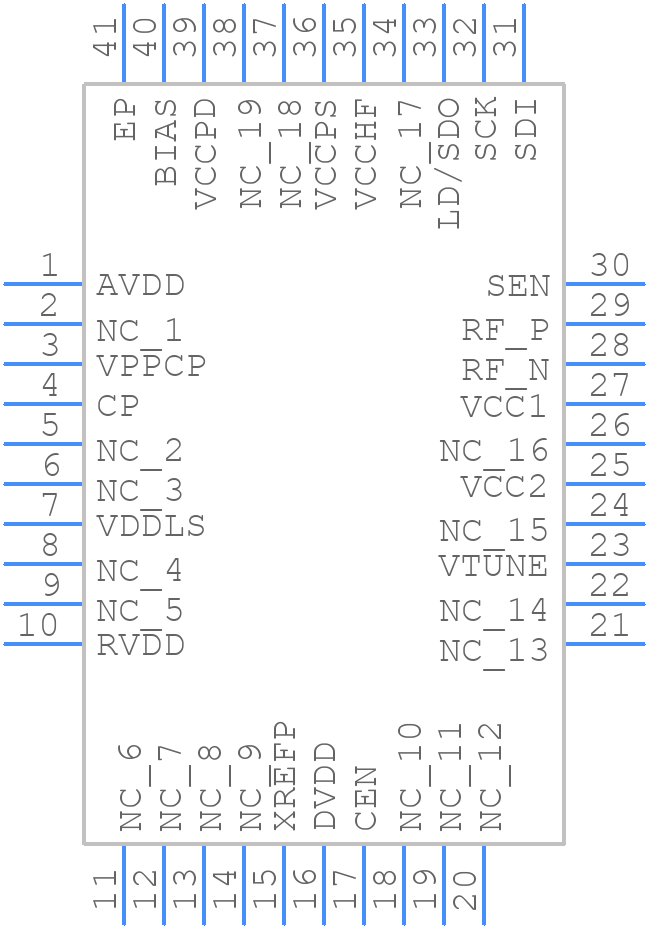

HMC832LP6GETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC832LP6GETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Quad Flat No-Lead Package [QFN] 6 mm × 6 mm Body, Very Thin Quad
click to zoom
3D Models
HMC832LP6GETR - Analog Devices - 3D model - Quad Flat No-Lead - 40-Lead Quad Flat No-Lead Package [QFN] 6 mm × 6 mm Body, Very Thin Quad
click to zoom

HMC832LP6GETR Details

  • Manufacturer Part Number:

    HMC832LP6GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    6 X 6 MM, ROHS COMPLIANT, PLASTIC, QFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

HMC832LP6GETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity and heat dissipation by using a heat sink and thermal interface material.
  • Use a combination of ceramic and electrolytic capacitors for power supply decoupling. Add a Pi-filter or a ferrite bead in series with the power supply lines to reduce noise and EMI.
  • Use a high-quality clock source, such as a crystal oscillator or a phase-locked loop (PLL). Ensure proper synchronization by using a single clock source for all components and avoiding clock domain crossings.
  • Use a logic analyzer or an oscilloscope to capture and analyze the device's signals. Check the device's status registers and error flags to identify the source of the issue. Consult the datasheet and application notes for troubleshooting guidelines.
  • The device has a maximum junction temperature of 150°C. Ensure good thermal management to prevent overheating. The device's power consumption is typically around 1.5W, but can vary depending on the application and operating conditions.
