HMC833LP6GE - Analog Devices

Description: Fractional-N PLL with Integrated VCO, 25 - 6000 MHz

Download HMC833LP6GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

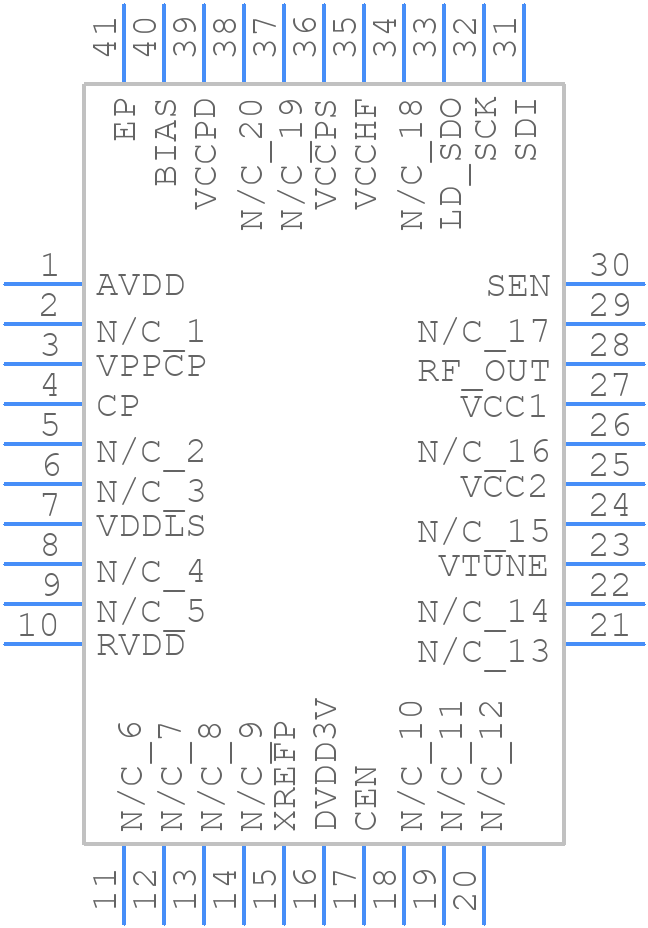

Symbol
HMC833LP6GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC833LP6GE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC833LP6GE-
click to zoom
3D Models
HMC833LP6GE - Analog Devices - 3D model - Quad Flat No-Lead - HMC833LP6GE-
click to zoom

HMC833LP6GE Details

  • Manufacturer Part Number:

    HMC833LP6GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMT-40

  • Pin Count:

    28

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES AT 5 V SUPPLY

  • Analog IC - Other Type:

    PHASE LOCKED LOOP
