HMC833LP6GETR - Analog Devices

Description: Phase Locked Loops - PLL Frctn-N PLL w/ Int VCO, 25 - 6000 MHz

Download HMC833LP6GETR Model

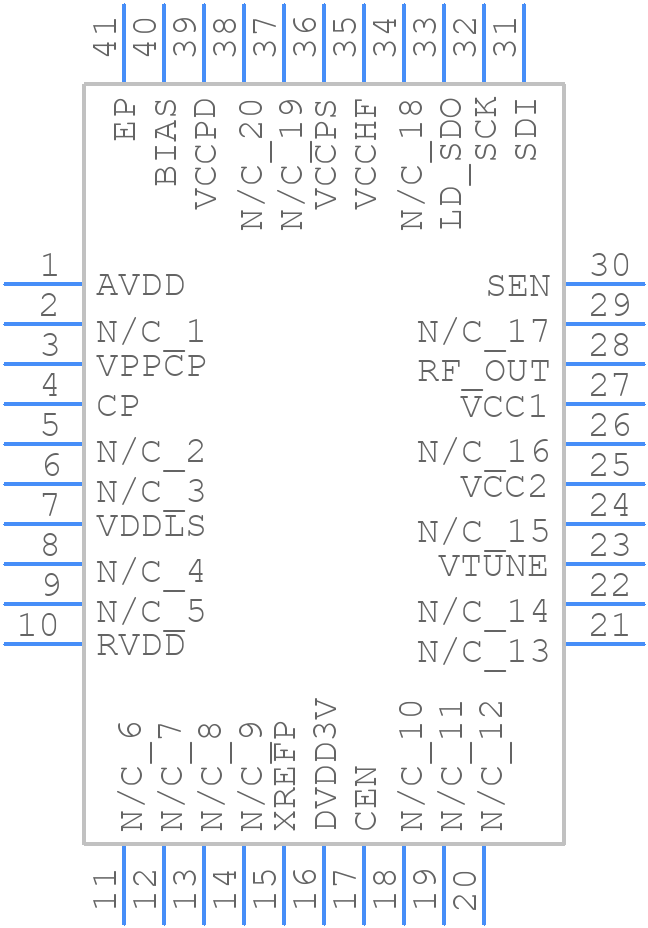

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC833LP6GETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H830 (40-pin QFN)
click to zoom
3D Models
HMC833LP6GETR - Analog Devices  - 3D model - Quad Flat No-Lead - H830 (40-pin QFN)
click to zoom

HMC833LP6GETR Details

  • Manufacturer Part Number:

    HMC833LP6GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    100 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30
