HMC836LP6CE - Analog Devices

Description: Fractional-N PLL with Integrated VCO SMT, 3365 - 3705 MHz

Download HMC836LP6CE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

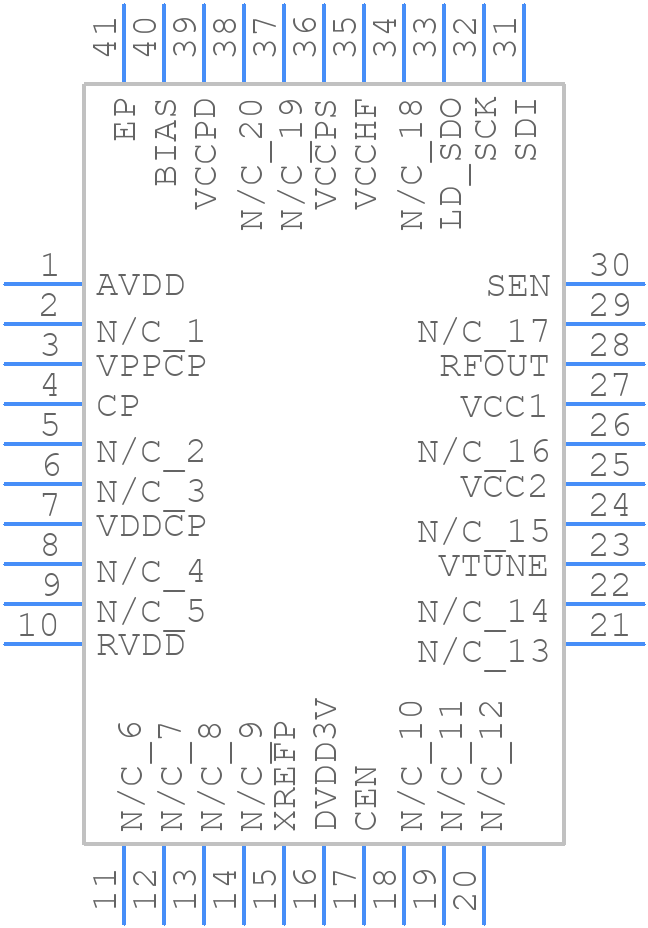

HMC836LP6CE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC836LP6CE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC838LP6CETR-**
click to zoom
3D Models
HMC836LP6CE - Analog Devices - 3D model - Quad Flat No-Lead - HMC838LP6CETR-**
click to zoom

HMC836LP6CE Details

  • Manufacturer Part Number:

    HMC836LP6CE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMT-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

HMC836LP6CE Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC836LP6CE involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the use of vias. Additionally, it's recommended to use a low-impedance path for the power supply and to decouple the power supply pins with capacitors.
  • To optimize the HMC836LP6CE for low noise performance, use a low-noise power supply, minimize the use of switching regulators, and keep the device away from noise sources. Additionally, use a low-pass filter at the output and ensure that the input signal is properly filtered and terminated.
  • The HMC836LP6CE is rated for operation from -40°C to +85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • Yes, the HMC836LP6CE can be used in a non-50 ohm system, but it may require additional impedance matching networks to ensure optimal performance. It's recommended to consult with an RF engineer or perform simulations to determine the required matching networks.
  • To troubleshoot common issues with the HMC836LP6CE, start by checking the power supply and ensuring that it's stable and well-regulated. Next, verify that the input and output signals are properly terminated and filtered. If the issue persists, consult the datasheet and application notes for troubleshooting guides or contact Analog Devices' technical support.
